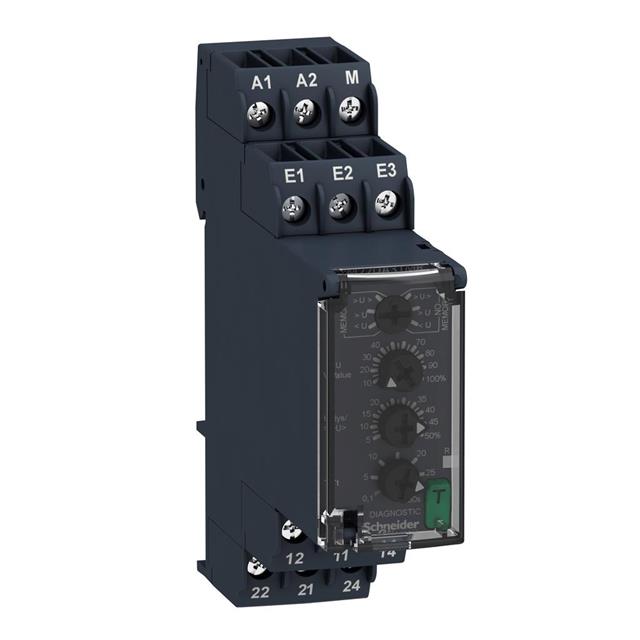

RM22UA31MR
ActiveSCHNEIDER ELECTRIC
VOLTAGE CONTROL RELAY, DPDT, 0.05V-5V
RM22UA31MR
ActiveSCHNEIDER ELECTRIC
VOLTAGE CONTROL RELAY, DPDT, 0.05V-5V
Description
General part information
RM22UA31MR
Voltage Sensing AC/DC 24 ~ 240VAC/DC
Technical Specifications
Parameters and characteristics for this part
| Specification | RM22UA31MR |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating (Current) | 8 A |
| Delay Time (Maximum) | 30 Sec |
| Delay Time (Minimum) | 0.1 Sec |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Trip Status | Low, Energized High |
| Trip Voltage (Max) | 5 V |
| Trip Voltage (Min) | 0.05 V |
| Type | Voltage Sensing AC/DC |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
