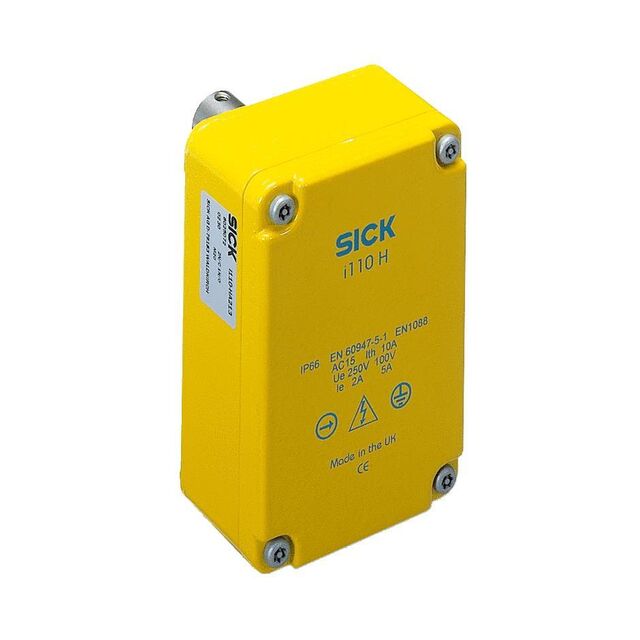

6025072
ActiveSICK, Inc.
ELECTRO-MECHANICAL SAFETY SWITCH
6025072
ActiveSICK, Inc.
ELECTRO-MECHANICAL SAFETY SWITCH
Description
General part information
6025072
ELECTRO-MECHANICAL SAFETY SWITCH
Technical Specifications
Parameters and characteristics for this part
| Specification | 6025072 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | EAC, CE, cULus |
| Circuit | 3PST-2NC/1NO |
| Conduit Thread Size | M20 |
| Current Rating | 2 A, 3 A |
| Ingress Protection Description | Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP66 |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Screw Terminal |
| Type | Non-Locking |
| Voltage Rating (AC) | 240 VAC |
| Voltage Rating (DC) | 24 VDC |
