282869-2
ActiveTE Connectivity AMP Connectors
CONN EUROSTYLE BLOCK M 2 POS 2.54MM SOLDER ST THRU-HOLE 13.5A BOX
282869-2
ActiveTE Connectivity AMP Connectors
CONN EUROSTYLE BLOCK M 2 POS 2.54MM SOLDER ST THRU-HOLE 13.5A BOX
Description
General part information

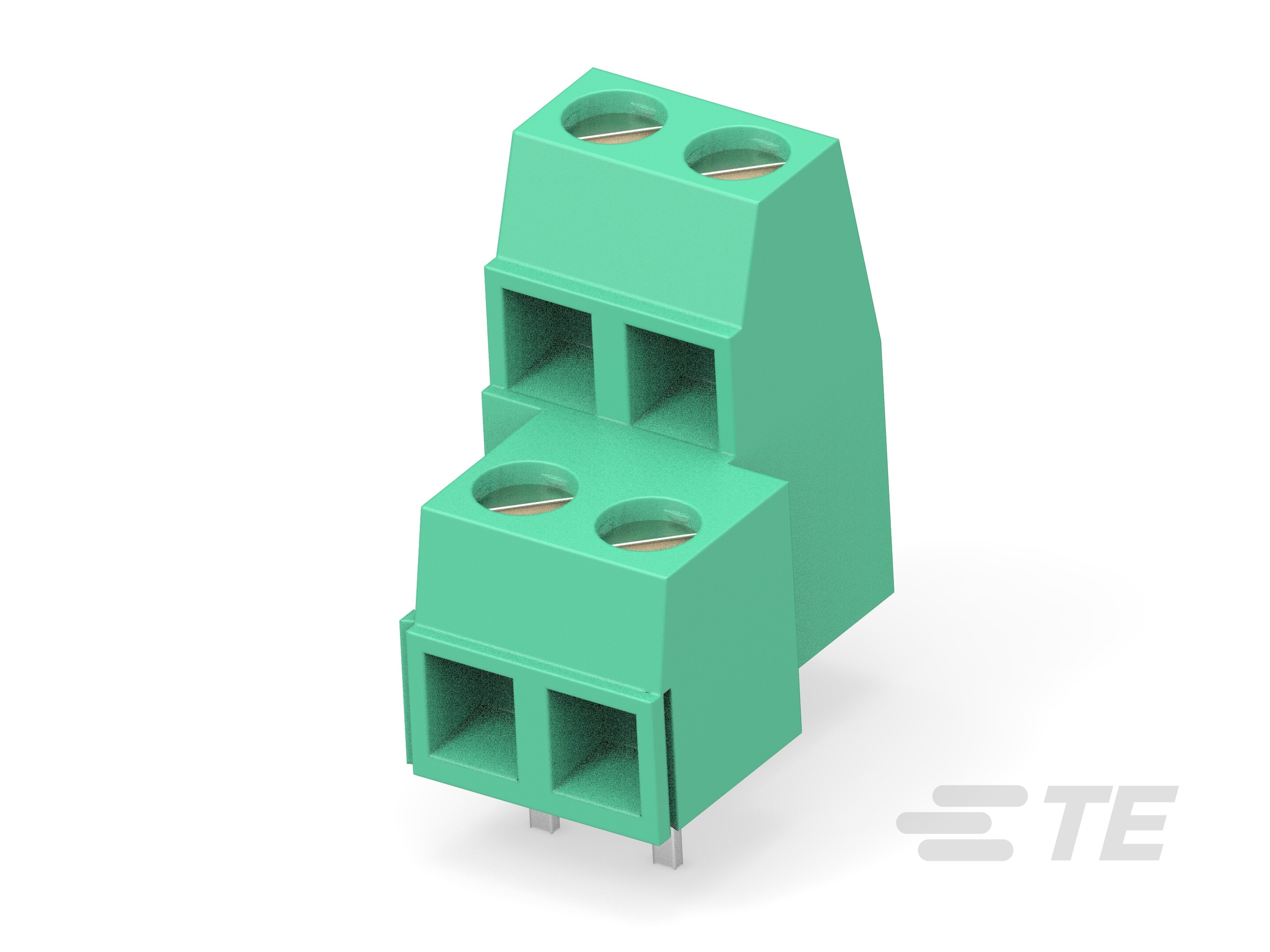

282869-2
2 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm [.2 in] Centerline, 2 Row, 90° Wire Entry Angle, 30 – 16 AWG, .05 – 1.4 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 282869-2 |
|---|---|
| Color | Green |
| Current | 13.5 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 2 |
| Pitch | 5.08 mm |
| Positions Per Level | 2 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
