095-850-300M050
ActiveMcGill Microwave Systems
CBL ASSY HD-BNC JACK-PLUG 19.69"
095-850-300M050
ActiveMcGill Microwave Systems
CBL ASSY HD-BNC JACK-PLUG 19.69"
Description
General part information
095-850-300M050

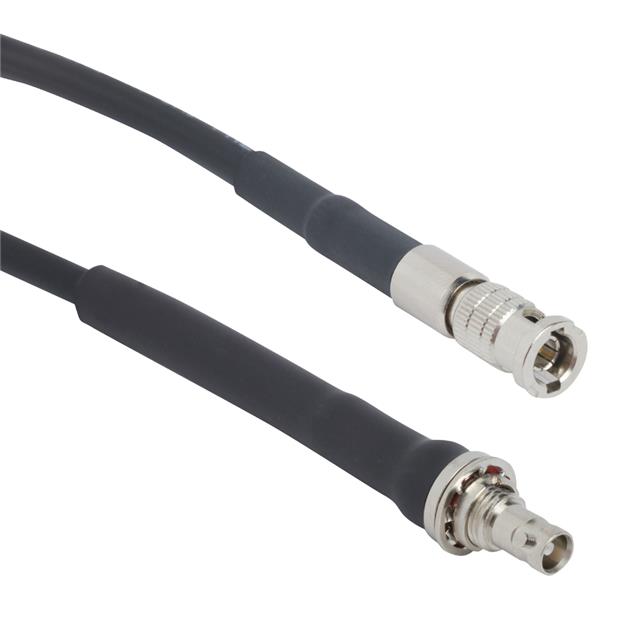

Cable Assembly Coaxial HD-BNC to HD-BNC Belden 4855R 19.69" (500.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-850-300M050 |
|---|---|
| 1st Connector | HD-BNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | Belden 4855R |
| Color | Black |
| Connector Impedance | 75 Ohms |
| Frequency - Max | 12 Gbps |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 19.69 in |
| Overall Impedance | 75 Ohms |
| Style | HD-BNC |
