Description
General part information
HS50 R15 F

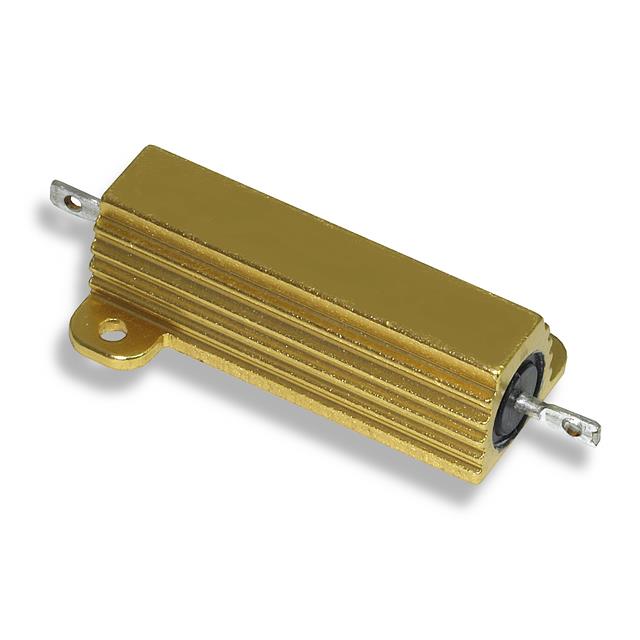

150 mOhms ±1% 50W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | HS50 R15 F |
|---|---|
| Coating | Aluminum |
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Height - Seated (Max) | 0.583 in |
| Housing Type | Aluminum |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Package / Case | Box, Axial |
| Power (Watts) | 50 W |
| Resistance | 0.15 Ohms |
| Size / Dimension Length | 1.933 in |
| Size / Dimension Width | 0.559 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
