6-175638-2
ActiveTE Connectivity AMP Connectors
BOARD TO BOARD & MEZZANINE CONNECTORS 1.25FP,R12,DL,B,C,TR
6-175638-2
ActiveTE Connectivity AMP Connectors
BOARD TO BOARD & MEZZANINE CONNECTORS 1.25FP,R12,DL,B,C,TR
Description
General part information
6-175638-2

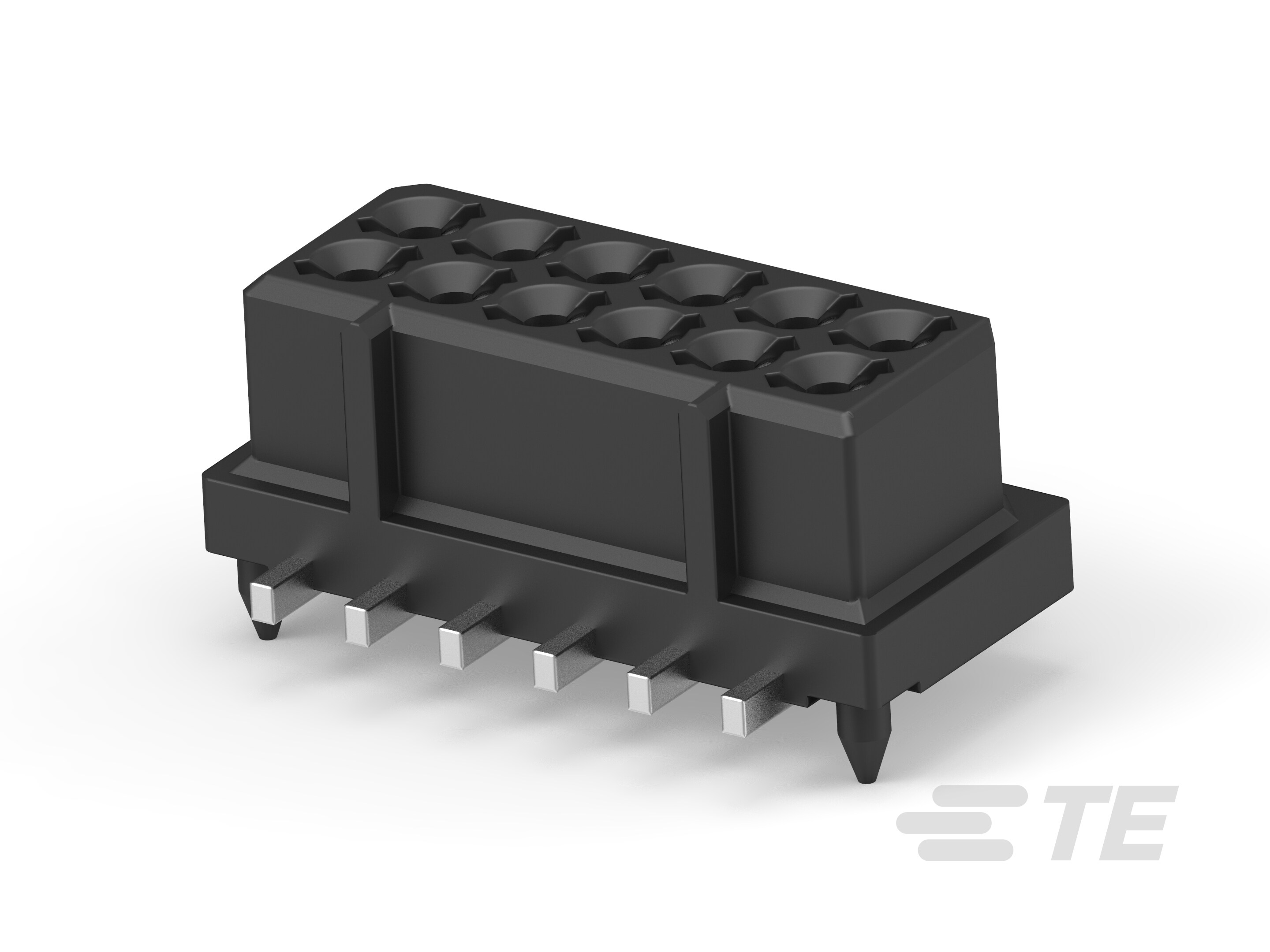

PCB Mount Receptacle, Vertical, Board-to-Board, 12 Position, 1.25 mm Centerline, Tin (Sn), Surface Mount, Signal, Black, Tape & Reel
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-175638-2 |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 31.5 µin |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Style | Board |
| Termination | Solder |
