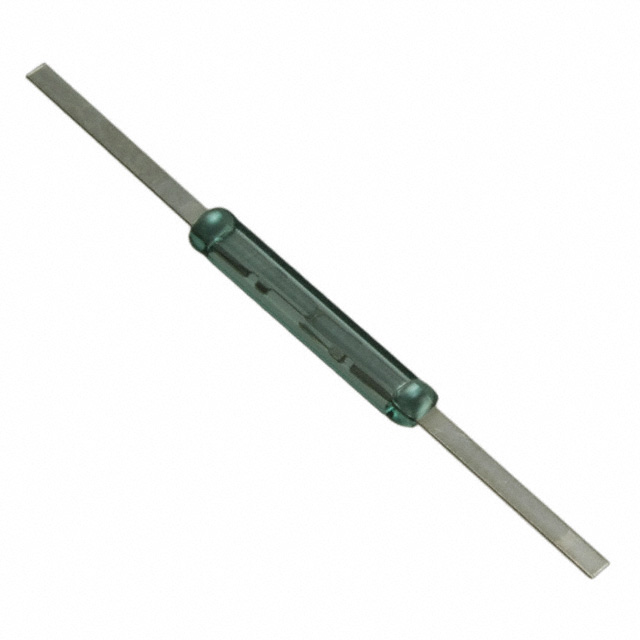

FRB2S1015
ObsoleteCOTO TECHNOLOGY
SWITCH REED SPST-NO 500MA 200V
FRB2S1015
ObsoleteCOTO TECHNOLOGY
SWITCH REED SPST-NO 500MA 200V
Description
General part information
FRB2S1015
Glass Body Reed Switch SPST-NO 10 ~ 15AT Operate Range 10VA 500mA (AC/DC) 200 V Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FRB2S1015 |
|---|---|
| Capacitance | 0.3 pF |
| Circuit | SPST-NO |
| Current - Carry | 1.5 A |
| Current - Carry Type | DC, AC |
| Current - Switching (AC/DC) | 0.5 A |
| Current - Switching Type | DC, AC |
| Length - Overall | 1.36 in |
| Mounting Type | Surface Mount |
| Operate Range (Max) | 15 AT |
| Operate Range (Min) | 10 AT |
| Operate Time | 0.5 ms |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Power - Rated | 10 W |
| Release Time | 0.2 ms |
| Size - Body Height | 0.09 in |
| Size - Body Length | 0.549 in |
| Size - Body Width | 0.1 in |
| Termination Style | Axial, Flat |
| Type | Glass Body Reed |
| Voltage - Switching AC | 200 V |
| Voltage - Switching DC | 200 V |
