L201314A-102LHF
ActiveITG Electronics, Inc.
1000.00UH, 15%, 950.00MOHM, 1.1A
L201314A-102LHF
ActiveITG Electronics, Inc.
1000.00UH, 15%, 950.00MOHM, 1.1A
Description
General part information
L201314A-102LHF

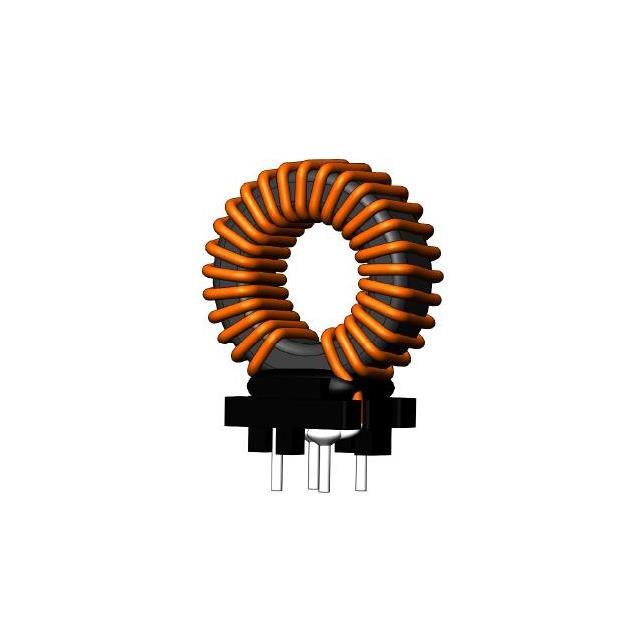

1000 µH Toroidal Inductor 1.1 A 950mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | L201314A-102LHF |
|---|---|
| Current - Saturation (Isat) | 1 A |
| Current Rating | 1.1 A |
| DC Resistance (DCR) (Max) | 950 mOhm |
| Height - Seated (Max) | 1.161 in |
| Inductance | 1 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Sendust |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Vertical Cylinder |
| Size / Dimension Length | 0.984 in |
| Size / Dimension Width | 0.61 in |
| Tolerance | 15 % |
| Type | Toroidal |
