AB6005S-8.5-0.3278

Active

3M (TC)

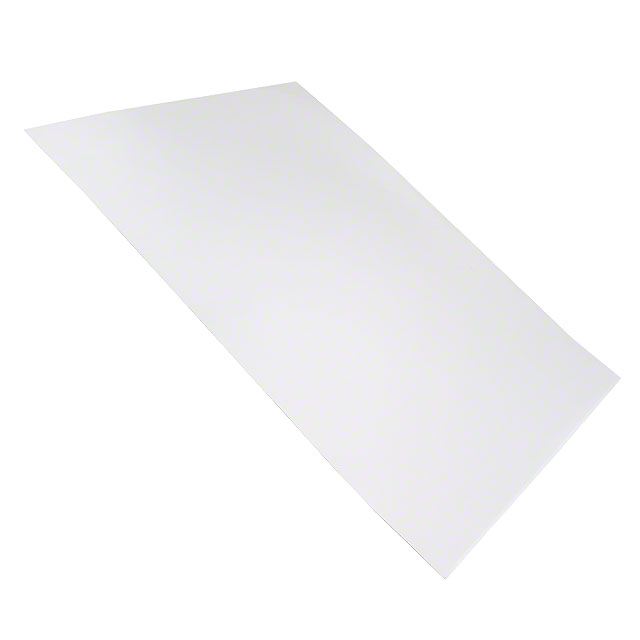

RF EMI ABSORB SHEET 11.5"X8.5"

Search across all available documentation for this part.

Active

3M (TC)

RF EMI ABSORB SHEET 11.5"X8.5"

Technical Specifications

Parameters and characteristics for this part

Specification	AB6005S-8.5-0.3278

Adhesive	Single Sided, Non-Conductive
Length	292.1 mm
Length	11.5 "
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thickness - Overall	0.11 mm
Thickness - Overall	0.004 in
Type	Absorbing Sheet
Width [x]	215.9 mm
Width [x]	8.5 in

Part	Type	Length	Length	Shape	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Shelf Life Start	Thickness - Overall	Thickness - Overall	Width [x]	Width [x]	Operating Temperature [Min]	Operating Temperature [Max]	Adhesive	Length [x]	Length [x]	Material
3M (TC) AB6005S-8.5-0.3278	Absorbing Sheet	292.1 mm	11.5 "	Rectangular	70 °F	21 °C	12 Months	Date of Shipment	0.11 mm	0.004 in	215.9 mm	8.5 in	-30 ░C	105 ░C	Non-Conductive Single Sided
3M (TC) AB6005S	Absorbing Sheet			Rectangular	70 °F	21 °C	12 Months	Date of Manufacture	0.11 mm	0.004 in	210 mm	8.268 in	-30 ░C	105 ░C	Non-Conductive Single Sided	11.693 in	297 mm	Metal Flakes Polymer Resin
3M (TC) AB6005HF-25MMX10M	Absorbing/Shielding Sheet			Roll	70 °F	21 °C	12 Months	Date of Shipment	0.11 mm	0.004 in	25 mm	0.98 in	-30 ░C	105 ░C	Non-Conductive Single Sided	32.81 ft	10 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Absorbing Sheet AB6000S Non-Conductive, Single Sided 8.500" (215.90mm) X 11.500" (292.10mm) X 0.004" (0.11mm)
