1241.6934.1122000
ActiveSCHURTER Inc.

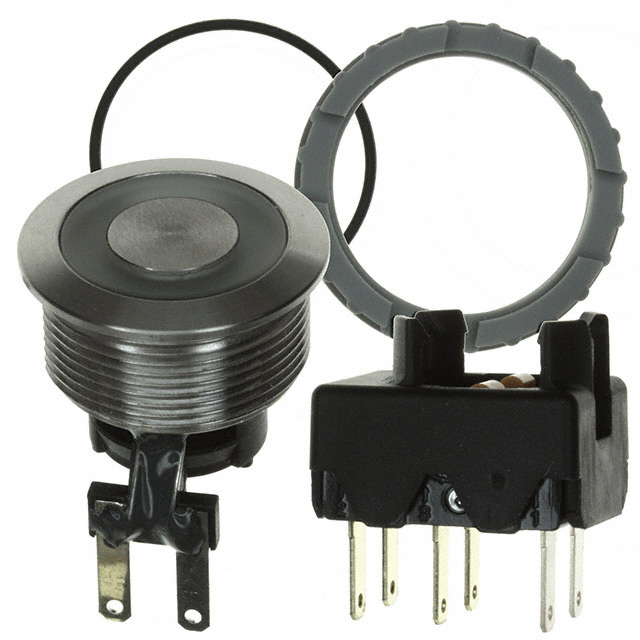

SWITCH PUSHBUTTON DPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1241.6934.1122000
ActiveSCHURTER Inc.
SWITCH PUSHBUTTON DPDT 5A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1241.6934.1122000 | 1241.6934 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Flush, Button, Round | Flush, Button, Round |
| Circuit | DPDT | DPDT |
| Color - Actuator/Cap | Silver | Silver |
| Current Rating (Amps) | 5 A | 5 A |
| Electrical Life | 200000 Cycles | 200000 Cycles |
| Illumination Type, Color | LED, Green | Red, LED, Green |
| Illumination Voltage (Nominal) | 24 V | 24 V |
| Ingress Protection | IP40 | IP40 |
| Mechanical Life | 1500000 Cycles | 1500000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.1 mm | 22.1 mm |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V | 125 V |
1241.6934 Series
SWITCH PUSHBUTTON DPDT 5A 125V
| Part | Illumination Type, Color | Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Termination Style | Mechanical Life | Voltage Rating - AC | Mounting Type | Illumination Voltage (Nominal) | Ingress Protection | Circuit | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Actuator Marking | Color - Actuator/Cap | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 1241.6934.1121000 | LED, Red | Anti-Vandal, Illuminated | On-Mom | -25 °C | 85 °C | Button, Flush, Round | Quick Connect - 0.110" (2.8mm) | 1500000 Cycles | 125 V | Panel Mount, Front | 24 V | IP40 | DPDT | 22.1 mm | 5 A | No Marking | Silver | 200000 Cycles |
SCHURTER Inc. 1241.6934.1122000 | Green, LED | Anti-Vandal, Illuminated | On-Mom | -25 °C | 85 °C | Button, Flush, Round | Quick Connect - 0.110" (2.8mm) | 1500000 Cycles | 125 V | Panel Mount, Front | 24 V | IP40 | DPDT | 22.1 mm | 5 A | No Marking | Silver | 200000 Cycles |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1241.6934 Series
Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
