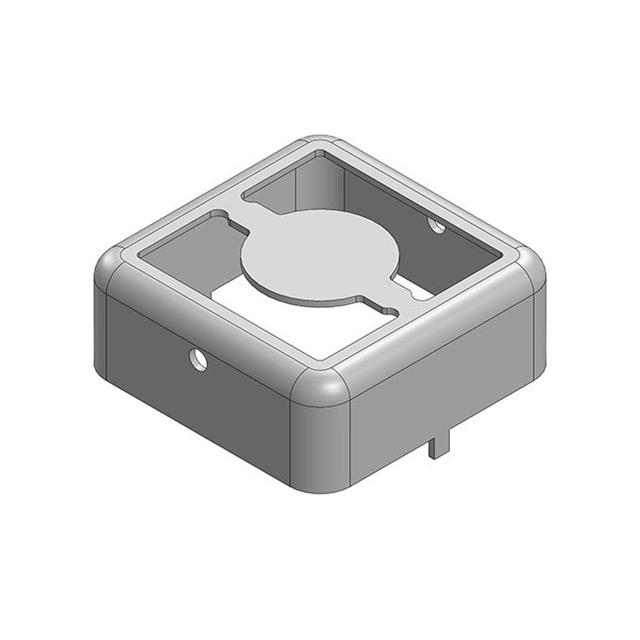

MS130-10F-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.512"X0.512" SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
MS130-10F-NS
ActiveMasach Tech Ltd.
RF SHIELD 0.512"X0.512" SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS130-10F-NS |
|---|---|
| Height - Overall [z] | 5 mm |
| Height - Overall [z] | 0.197 in |
| Length - Overall | 13 mm |
| Length - Overall | 0.512 " |
| Mounting Type | Solder |
| Type | Frame |
| Width - Overall [x] | 13 mm |
| Width - Overall [x] | 0.512 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.70 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.49 | |||
| 130 | $ 1.17 | |||
| 260 | $ 1.07 | |||
| 520 | $ 0.99 | |||
| 1040 | $ 0.92 | |||
| 2470 | $ 0.85 | |||
| 4940 | $ 0.80 | |||
Description
General part information
MS130 Series
RF Shield Frame 0.512" (13.00mm) X 0.512" (13.00mm) Solder
Documents
Technical documentation and resources
