SPHWHTL3D20CE3PTH3

Obsolete

Samsung Semiconductor, Inc.

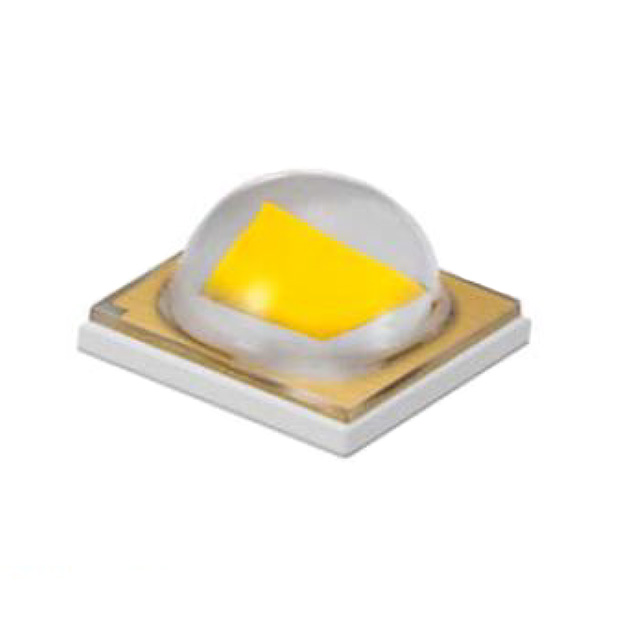

LED LH351Z COOL WHITE 6500K 3535

Deep-Dive with AI

Search across all available documentation for this part.

SPHWHTL3D20CE3PTH3

Obsolete

Samsung Semiconductor, Inc.

LED LH351Z COOL WHITE 6500K 3535

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SPHWHTL3 Series

LED Lighting LH351Z White, Cool 6500K 2.9V 350mA 115° 1414 (3535 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPHWHTL3D20CE3PTH3	SPHWHTL3 Series

	-	-
CCT (K)	6500 K	2700 - 7000 K
CCT (K)	-	5-Step MacAdam Ellipse
Color	Cool, White	Cool, White, Neutral, Warm
CRI (Color Rendering Index)	70	68 - 90
Current - Max [Max]	1 A	1 - 3 A
Current - Test	350 mA	1.05 - 350 A
Flux @ 25°C, Current - Test	-	80 - 140 lm
Flux @ 25°C, Current - Test	-	110 - 150 lm
Flux @ 25°C, Current - Test	-	140 - 160 lm
Flux @ 85°C, Current - Test	120 lm	100 - 510 lm
Flux @ 85°C, Current - Test	-	330lm ~ 390lm
Flux @ 85°C, Current - Test [Max]	130 lm	110 - 520 lm
Flux @ 85°C, Current - Test [Min]	110 lm	90 - 480 lm
Flux @ 85C, Current - Test	-	350 lm
Flux @ 85C, Current - Test	-	290 lm
Height - Seated (Max)	2.06 mm	2.06 mm
Height - Seated (Max)	-	2.46 mm
Height - Seated (Max)	-	0.097 "
Height - Seated (Max)	-	2.02 mm
Height - Seated (Max) [Max] [z]	0.081 "	0.08 - 0.081 "
Lumens/Watt @ Current - Test	118 lm/W	98 - 180 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	3535 Metric	3535 Metric
Package / Case	1414	1414
Size / Dimension [x]	3.5 mm	3.5 mm
Size / Dimension [x]	0.138 in	0.138 in
Size / Dimension [y]	3.5 mm	3.5 mm
Size / Dimension [y]	0.138 in	0.138 in
Supplier Device Package	3535	3535, 1414
Thermal Resistance of Package	-	2.2 °C/W
Thermal Resistance of Package	-	4 °C/W
Thermal Resistance of Package	-	25 °C/W
Thermal Resistance of Package [diameter]	7 °C/W	3 - 7 °C/W
Viewing Angle	115 °	115 - 128 °
Voltage - Forward (Vf) (Typ)	2.9 V	2.85 - 3 V

SPHWHTL3 Series

LED LH351D COOL WHITE 5000K 3535

...

Part	Package / Case	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Max [Max]	Flux @ 85°C, Current - Test	Color	CRI (Color Rendering Index)	Thermal Resistance of Package	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Thermal Resistance of Package [diameter]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]
Samsung Semiconductor, Inc. SPHWHTL3DA0EF4RTU6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	450 lm	Cool, White	80	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	5000 K	143 lm/W	2.46 mm	0.097 "	3535
Samsung Semiconductor, Inc. SPHWHTL3D50GE4TMJF	3535 Metric	1414		2.9 V	128 °	2 A	240 lm	Neutral, White	90		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	118 lm/W	2.46 mm	0.097 "	3535	3 °C/W	210 lm	270 lm
Samsung Semiconductor, Inc. SPHWHTL3DA0EF4QTU6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	450 lm	Cool, White	80	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	5700 K	143 lm/W	2.46 mm	0.097 "	3535
Samsung Semiconductor, Inc. SPHWHTL3D50CE4VMNF	3535 Metric	1414		2.9 V	128 °	2 A		Warm, White	70		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	3000 K	148 lm/W	2.46 mm	0.097 "	3535	3 °C/W	270 lm	330 lm
Samsung Semiconductor, Inc. SPHWHTL3D50CE4TPPF	3535 Metric	1414		2.9 V	128 °	2 A	320 lm	Neutral, White	70		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	158 lm/W	2.46 mm	0.097 "	3535	3 °C/W
Samsung Semiconductor, Inc. SPHWHTL3DA0GF4TPQ6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	370 lm	Neutral, White	90	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	117 lm/W	2.46 mm	0.097 "	3535
Samsung Semiconductor, Inc. SPHWHTL3DA0GF4VMN6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	330 lm	Warm, White	90	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	3000 K	105 lm/W	2.46 mm	0.097 "	3535		300 lm	360 lm
Samsung Semiconductor, Inc. SPHWHTL3D50EE4WPKF	3535 Metric	1414		2.9 V	128 °	2 A	260 lm	Warm, White	80		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	2700 K	128 lm/W	2.46 mm	0.097 "	3535	3 °C/W
Samsung Semiconductor, Inc. SPHWHTL3D50GE4RTKF	3535 Metric	1414		2.9 V	128 °	2 A	260 lm	Cool, White	90		Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	5000 K	128 lm/W	2.46 mm	0.097 "	3535	3 °C/W
Samsung Semiconductor, Inc. SPHWHTL3DA0GF4T0P6	3535 Metric	1414	1.05 A	3 V	128 °	3 A	350 lm	Neutral, White	90	2.2 °C/W	Surface Mount	3.5 mm	3.5 mm	0.138 in	0.138 in	4000 K	111 lm/W	2.46 mm	0.097 "	3535
