100023995
ActiveTelegartner Inc
N JCK STR CL/CL G36
100023995
ActiveTelegartner Inc
N JCK STR CL/CL G36
Description
General part information
100023995

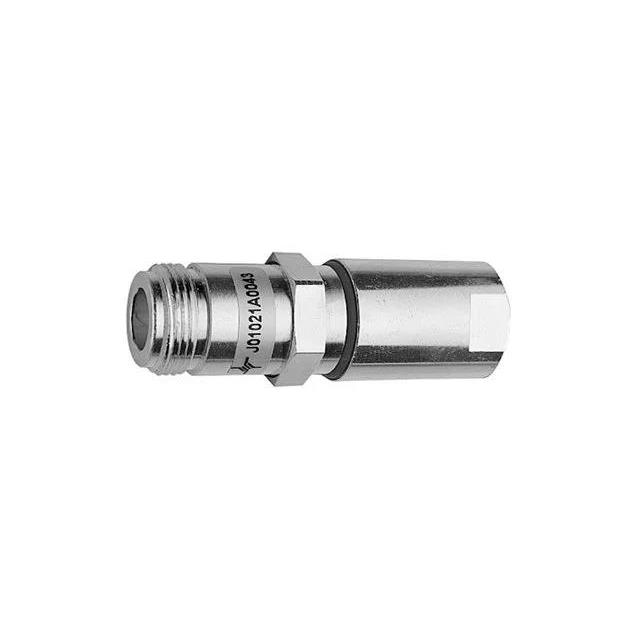

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023995 |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Clamp |
| Voltage Rating | 1000 V |
