LFV10-8Q

Active

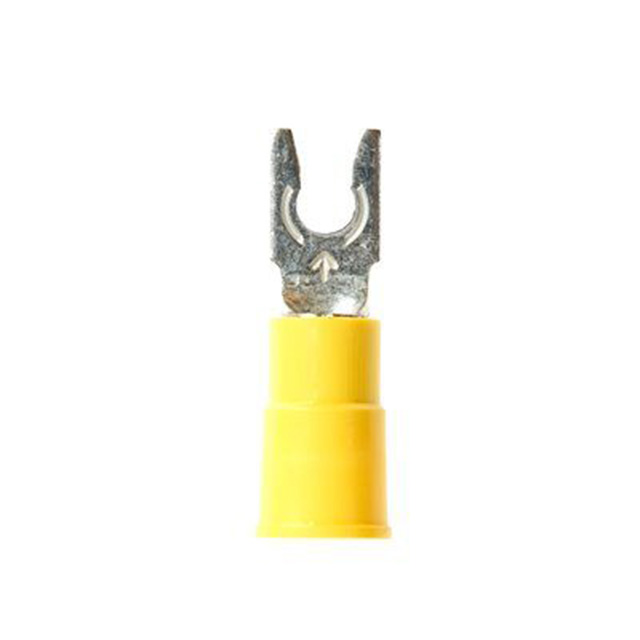

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Search across all available documentation for this part.

Active

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LFV10-8Q	LFV10 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Butted Seam	Butted Seam
Insulation	Insulated	Insulated
Insulation Diameter	0.25 "	0.25 "
Insulation Diameter	6.35 mm	6.35 mm
Length - Overall	26.16 mm	26.16 mm
Length - Overall [x]	1.03 in	1.03 in
Length - Ring Center to Termination	7.11 mm	7.11 mm
Length - Ring Center to Termination	0.28 in	0.28 in
Length - Termination	13.97 mm	13.97 mm
Length - Termination	0.55 in	0.55 in
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Stud/Tab Size	8 Stud	8 Stud
Stud/Tab Size	-	10 Stud
Terminal Type	Snap, Spring	Snap, Spring
Termination	Crimp	Crimp
Width - Outer Edges [y]	8.13 mm	8.13 mm
Width - Outer Edges [y]	0.32 in	0.32 in
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

LOCKING FORK VINYL INSULATED HIGHLAND BAG 25/BAG

Part	Terminal Type	Color	Length - Termination	Length - Termination	Insulation Diameter	Insulation Diameter	Material - Insulation	Features	Contact Material	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Termination	Mounting Type	Contact Finish	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall [x]	Length - Overall	Length - Ring Center to Termination	Length - Ring Center to Termination	Stud/Tab Size
3M LFV10-10Q	Snap, Spring	Yellow	13.97 mm	0.55 in	0.25 "	6.35 mm	Vinyl	Butted Seam	Copper, ETP	10 Stud	8.13 mm	0.32 in	Crimp	Free Hanging (In-Line)	Tin	Insulated	12 AWG	10 AWG	1.03 in	26.16 mm	7.11 mm	0.28 in
3M LFV10-8Q	Snap, Spring	Yellow	13.97 mm	0.55 in	0.25 "	6.35 mm	Vinyl	Butted Seam	Copper, ETP		8.13 mm	0.32 in	Crimp	Free Hanging (In-Line)	Tin	Insulated	12 AWG	10 AWG	1.03 in	26.16 mm	7.11 mm	0.28 in	8 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG
