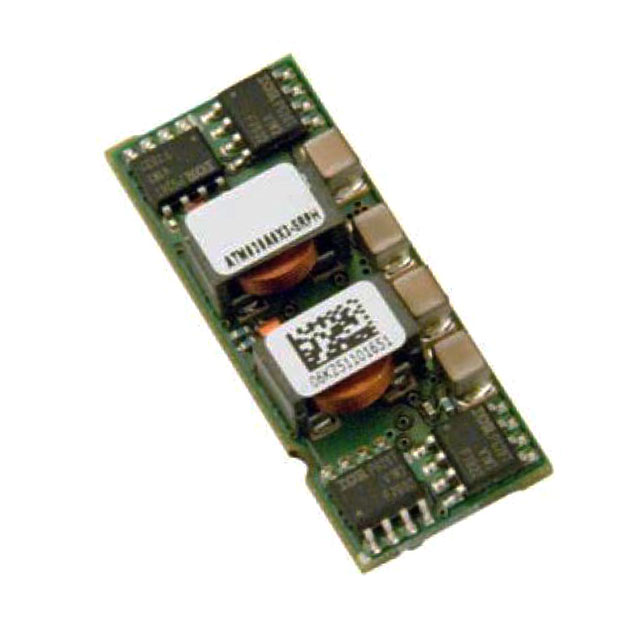

ATM030A0X3-SRZ
ObsoleteOmniOn Power™
DC DC CONVERTER 0.8-2V 60W
Deep-Dive with AI
Search across all available documentation for this part.
ATM030A0X3-SRZ
ObsoleteOmniOn Power™
DC DC CONVERTER 0.8-2V 60W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATM030A0X3-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 30 A |
| Efficiency | 91.6 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 60 W |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 4 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 [Max] | 2 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ATM030A0X3-SRZ
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2V 30A 2.7V - 4V Input
Documents
Technical documentation and resources
No documents available
