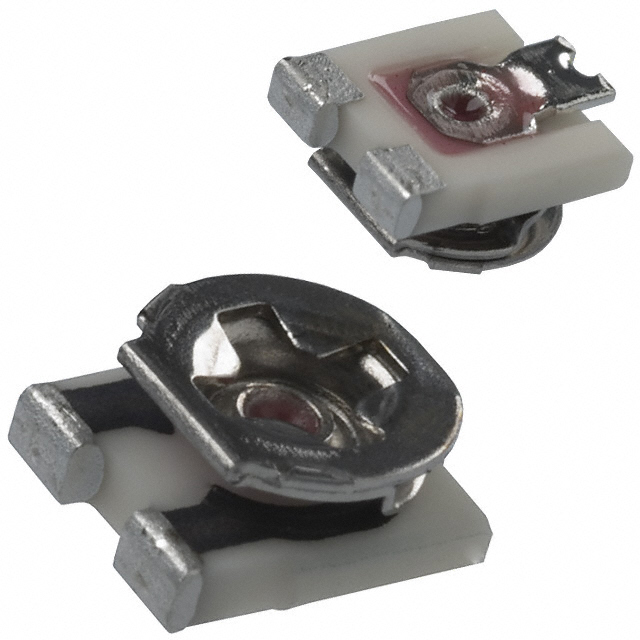

EVM-3YSX50B25
ObsoletePanasonic Electronic Components
TRIMMER 200KOHM 0.15W J LEAD TOP
EVM-3YSX50B25
ObsoletePanasonic Electronic Components
TRIMMER 200KOHM 0.15W J LEAD TOP
Description
General part information
EVM-3YSX50B25
200 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | EVM-3YSX50B25 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 turns |
| Power (Watts) | 150 mW |
| Resistance | 200 kOhm |
| Resistive Material | Cermet |
| Size / Dimension Length | 0.136 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.122 in |
| Temperature Coefficient | 250 ppm/°C |
| Temperature Coefficient (Highest) | 250 ppm/°C |
| Temperature Coefficient (Lowest) | -250 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 25 % |
