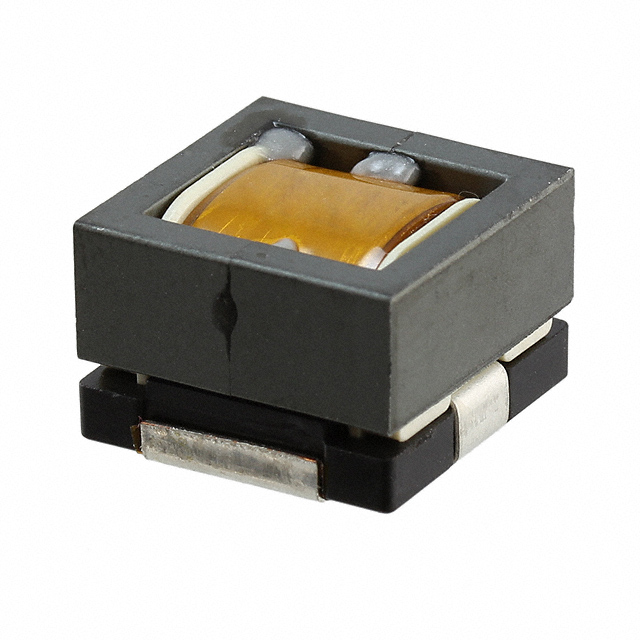

CEPH149NP-2R4MC
ObsoleteSumida America Components Inc.
FIXED IND 2.4UH 10A 1.5 MOHM SMD
CEPH149NP-2R4MC
ObsoleteSumida America Components Inc.
FIXED IND 2.4UH 10A 1.5 MOHM SMD
Description
General part information
CEPH149NP-2R4MC
2.4 µH Shielded Inductor 10 A 1.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CEPH149NP-2R4MC |
|---|---|
| Current Rating | 10 A |
| DC Resistance (DCR) (Max) | 1.5 mOhm |
| Height - Seated (Max) | 0.394 in |
| Inductance | 2.4 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.575 in |
| Size / Dimension Width | 0.575 in |
| Tolerance | 20 % |
