1011522
ActiveIntegrated Power Designs
DC1-80-1001
1011522
ActiveIntegrated Power Designs
DC1-80-1001
Description
General part information
1011522

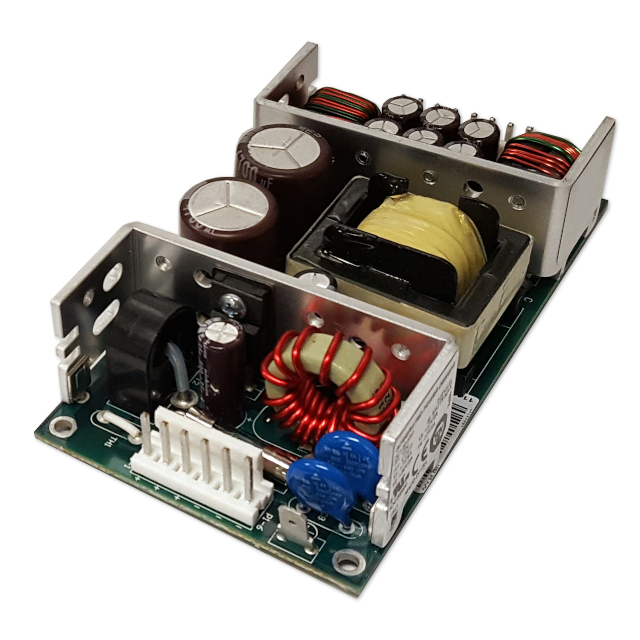

Open Frame DC DC Converter 1 Output 5V 16A 18V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 1011522 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, UKCA, TUV, CE |
| Current - Output (Max) | 16 A |
| Efficiency | 82 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 80 W |
| Size / Dimension Height | 1.17 in |
| Size / Dimension Length | 4.5 in |
| Size / Dimension Width | 2.5 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input (Max) | 18 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Output 1 | 5 V |
