Description
General part information

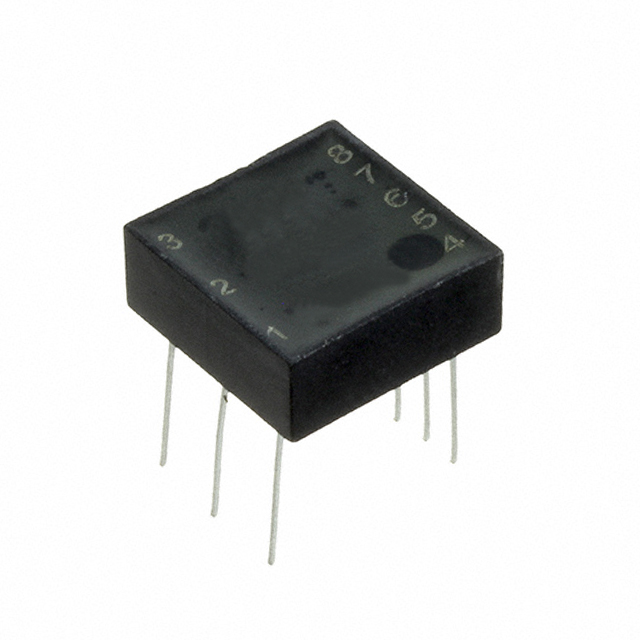

Q1553-70
MIL-STD-1553 Pulse Transformer 1CT:3CT, 1CT:2.15CT Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | Q1553-70 |
|---|---|
| Height - Seated (Max) | 0.25 in |
| Mounting Type | Through Hole |
| Size / Dimension Length | 0.624 in |
| Size / Dimension Width | 0.624 in |
| Transformer Type | MIL-STD-1553 |
| Turns Ratio - Primary:Secondary | 1CT:2.15CT, 1CT:3CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
