3044801
ActivePhoenix Contact
CONN TERM BLK DISCONN 10-26AWG
3044801
ActivePhoenix Contact
CONN TERM BLK DISCONN 10-26AWG
Description
General part information
3044801

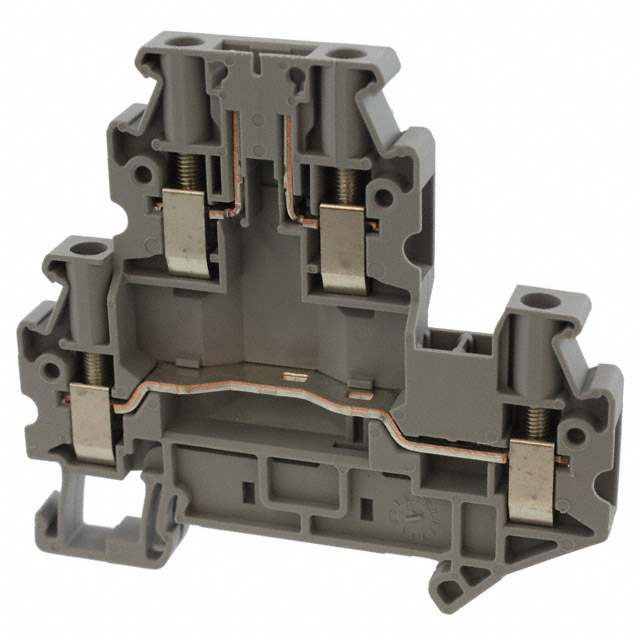

Terminal Block Connector 4 Position Disconnect, Feed Through Gray 10-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3044801 |
|---|---|
| Color | Gray |
| Current - IEC | 30 A |
| Disconnect Type | Open |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 9 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Disconnect, Feed Through |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
