03655.63.07
ActivePrysmian Group
CORD 16AWG NEMA5-15P - 5-15R 50'
03655.63.07
ActivePrysmian Group
CORD 16AWG NEMA5-15P - 5-15R 50'
Description
General part information
03655.63.07

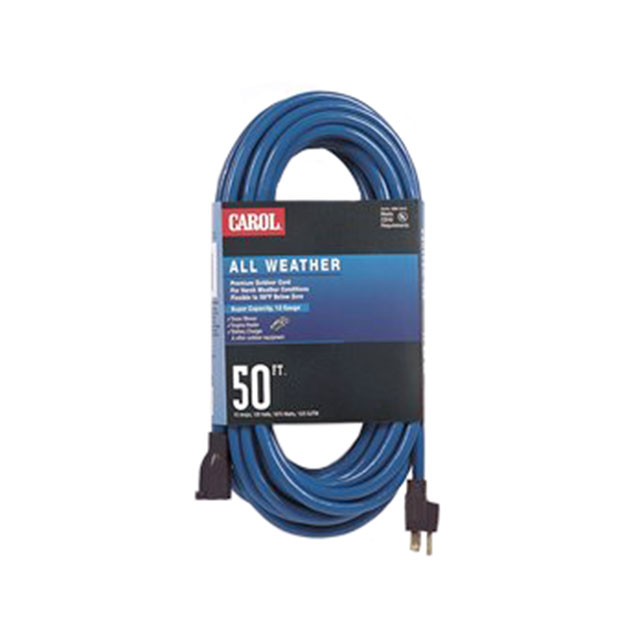

50.00' (15.24m) Power Cord Blue NEMA 5-15P To NEMA 5-15R SJEOOW
Technical Specifications
Parameters and characteristics for this part
| Specification | 03655.63.07 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | NEMA 5-15R |
| Approval Agency Marking | UL |
| Approved Countries | United States |
| Color | Blue |
| Cord Type | SJEOOW |
| Current Rating | 13 A |
| Features | Outdoor Use, OSHA Approved |
| Length | 50 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -50 °C |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
