Description
General part information

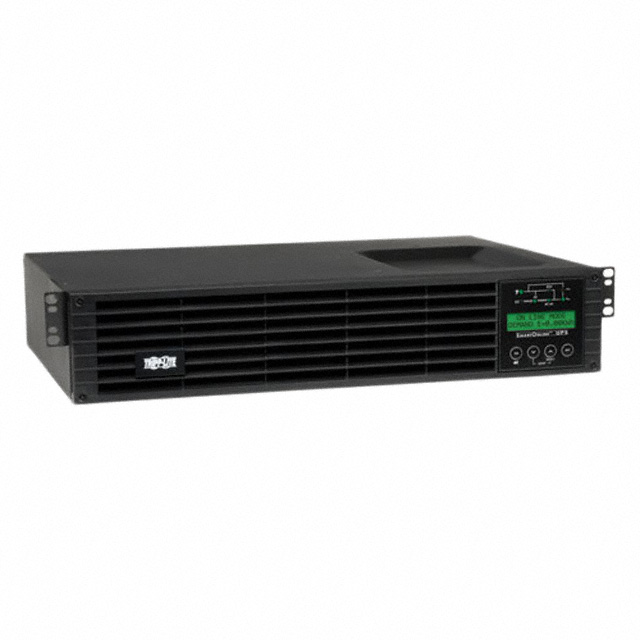

SU1000RTXLCD2U
UNINTERRUPTIBLE POWER SUPPLY (UPS), RACK MOUNT, 6 OUTLETS, 1KVA / 900W, 120 V, 120 V, 4.8 MIN
Technical Specifications
Parameters and characteristics for this part
| Specification | SU1000RTXLCD2U |
|---|---|
| AC Outlets (Count) | 2 count |
| Applications | Network, Single Phase |
| Approval Agency | CSA, FCC, UL |
| Backup Time - Max Load | 4.8 minutes |
| Cord Length | 10 ft |
| Form | Rackmount |
| Height | 3.504 in |
| Input Connector | NEMA 5-15P |
| Media Lines Protected | RS-232 |
| Output Connector | NEMA 5-15R |
| Output Connector Quantity (NEMA 5-15R) | 6 |
| Power - Rated (VA) | 1 kVA |
| Power - Rated (W) | 900 W |
| Size / Dimension Length | 17.52 in |
| Size / Dimension Width | 12.52 in |
| Type | Online (Double Conversion) |
| Voltage - Input | 120 VAC, 127 VAC, 115 V, 100 V, 110 VAC |
| Voltage - Output | 120 V |
