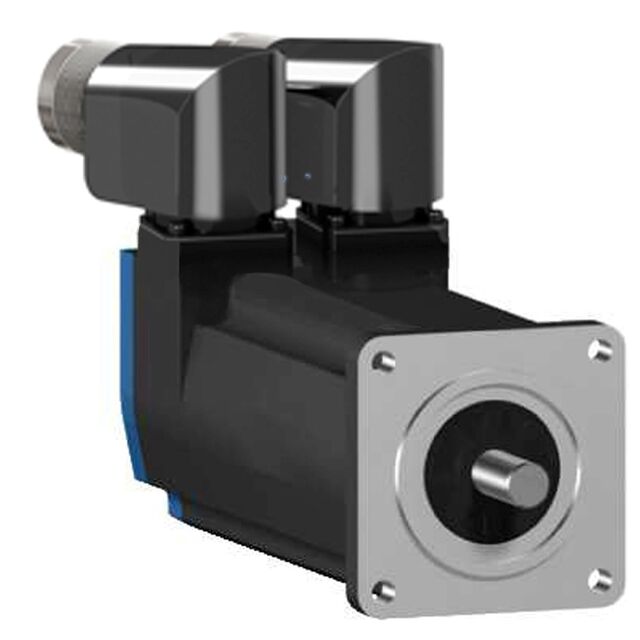

BSH0553T01A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 55 IP40 SMOOTH INC NOBRK A
BSH0553T01A2A
ActiveSCHNEIDER ELECTRIC
MOTOR 55 IP40 SMOOTH INC NOBRK A
Description
General part information
BSH0553T01A2A
AC Motor Servomotor 9000 RPM 550W 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BSH0553T01A2A |
|---|---|
| Diameter - Shaft | 0.354 in |
| Function | Servomotor |
| Length - Shaft and Bearing | 0.787 in |
| Mounting Hole Spacing | 1.575 in |
| Power - Rated | 550 W |
| RPM | 9000 RPM |
| Size / Dimension Length | 2.165 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 2.165 in |
| Termination Style | Connector |
| Torque - Rated (mNm) | 1140 mNm |
| Torque - Rated (oz-in) | 161.4 oz-in |
| Type | AC Motor |
| Voltage - Rated | 480 VAC |
