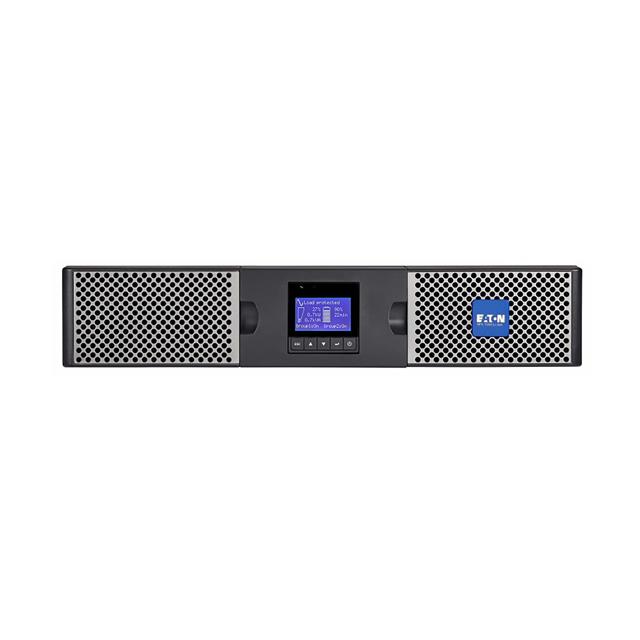

9PX1500GRT-L
ActiveEaton Tripp Lite
EATON 9PX 1500VA 1350W 208V ONLI
9PX1500GRT-L
ActiveEaton Tripp Lite
EATON 9PX 1500VA 1350W 208V ONLI
Description
General part information
9PX1500GRT-L
EATON 9PX 1500VA 1350W 208V ONLI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9PX1500GRT-L |
|---|---|
| AC Outlets (Count) | 8 count |
| Applications | General Purpose, Industrial Control |
| Approval Agency | cTUVus, NOM |
| Backup Time - Max Load | 3 minutes |
| Cord Length | 6 ft |
| Form | Rackmount, Tower |
| Height | 3.4 in |
| Input Connector | IEC 320-C14 |
| Media Lines Protected | RS-232 |
| Output Connector | IEC 320-C13 |
| Output Connector Pin Count | 8 |
| Power - Rated (VA) | 1.5 kVA |
| Power - Rated (W) | 1350 W |
| Size / Dimension Length | 17.7 in |
| Size / Dimension Width | 17.3 in |
| Type | Online (Double Conversion) |
| Voltage - Input | 240 VAC, 230 V, 220 VDC, 200 VAC, 208 VAC |
| Voltage - Output | 208V, 220V, 200V, 230V, 250V, 240V |
| Voltage - Output (1) | 200 V |
| Voltage - Output (2) | 208 V |
| Voltage - Output (3) | 220 V |
| Voltage - Output (4) | 230 V |
| Voltage - Output (5) | 240 V |
| Voltage - Output (6) | 250 V |
