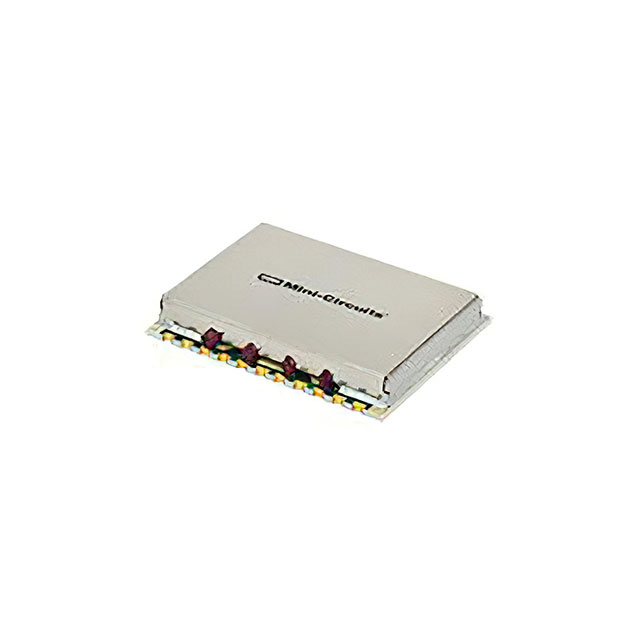

SEPS-2-63+
ActiveMini-Circuits
RF PWR DVDR 680MHZ-6GHZ 22SMD
SEPS-2-63+
ActiveMini-Circuits
RF PWR DVDR 680MHZ-6GHZ 22SMD
Description
General part information
SEPS-2-63+
RF Power Divider 680 MHz ~ 6 GHz Isolation (Min) 17dB, 2 VSWR (Max), 5° Imbalance (Max) 22-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SEPS-2-63+ |
|---|---|
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 680 MHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 1 dB |
| Isolation (Min) | 17 dB |
| Package / Case | 22-SMD, No Lead |
| Size / Dimension Height | 0.2 in |
| Size / Dimension Length | 1.25 in |
| Size / Dimension Width | 1 in |
| VSWR (Max) | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
