Description
General part information
ED350V-05P

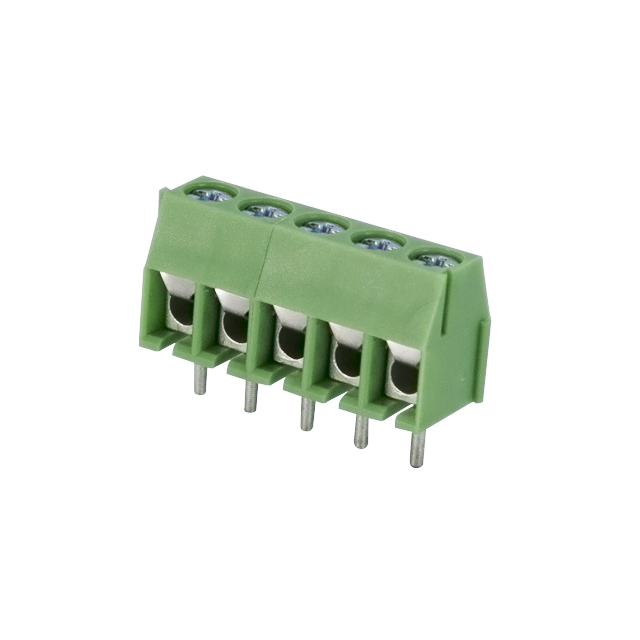

5 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | ED350V-05P |
|---|---|
| Color | Green |
| Current | 10 A |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 5 |
| Pitch | 0.138 in |
| Positions Per Level | 5 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
| Wire Termination | Wire Guard, Screw, Leaf Spring |
