100000098
ActiveMcGill Microwave Systems
CXL 2-3C/M
100000098
ActiveMcGill Microwave Systems
CXL 2-3C/M
Description
General part information
100000098

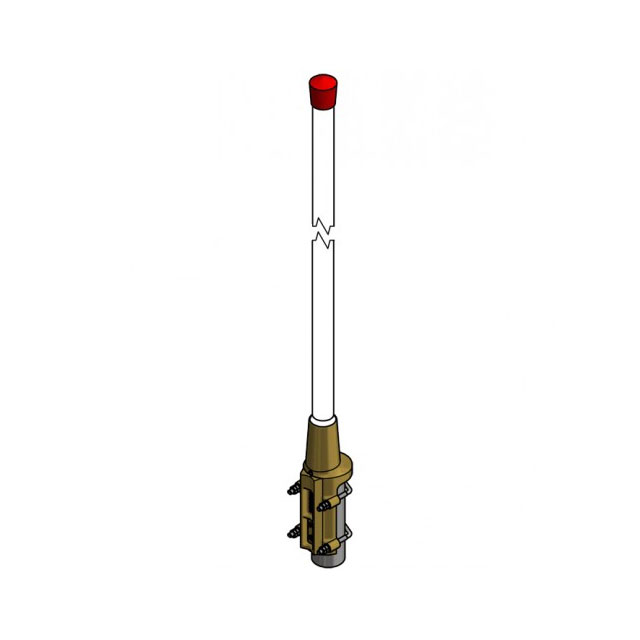

RF ANTENNA Whip, Straight N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 100000098 |
|---|---|
| Antenna Type | Straight, Whip |
| Frequency (Center/Band) | 159.5 MHz |
| Frequency Group | VHF |
| Frequency Group Maximum (VHF) | 300 MHz |
| Frequency Range (Max) | 166 MHz |
| Frequency Range (Min) | 153 MHz |
| Gain | 5.2 dBi |
| Height (Max) | 116.142 in |
| Ingress Protection | IP56 |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 150 W |
| Termination | N Type Female |
| VSWR | 1.5 |
