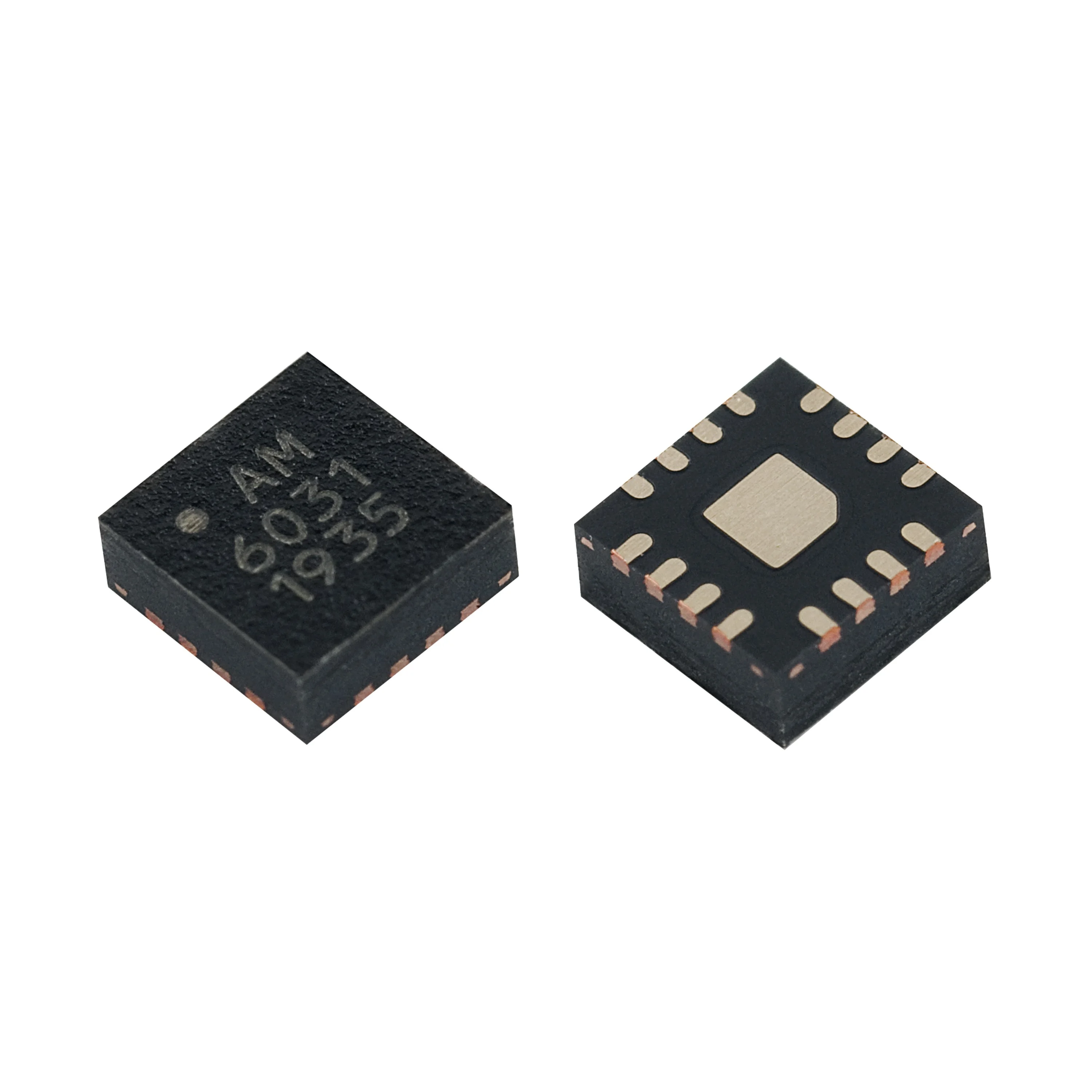

AM6031
ActiveAtlanta Micro Inc.
SPDT RF SWITCH, 20GHZ, ABSORPTIV
AM6031
ActiveAtlanta Micro Inc.
SPDT RF SWITCH, 20GHZ, ABSORPTIV
Description
General part information
AM6031
SPDT RF SWITCH, 20GHZ, ABSORPTIV
Technical Specifications
Parameters and characteristics for this part
| Specification | AM6031 |
|---|---|
| Circuit | SPDT |
| Frequency Range (Max) | 20 GHz |
| Frequency Range (Min) | 10 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 1.2 dB |
| Isolation | 50 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Length | 3 mm |
| Package Name | 12-QFN |
| Package Width | 3 mm |
| Test Frequency | 6 GHz |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 5 V |
| Voltage - Supply (Minimum) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
