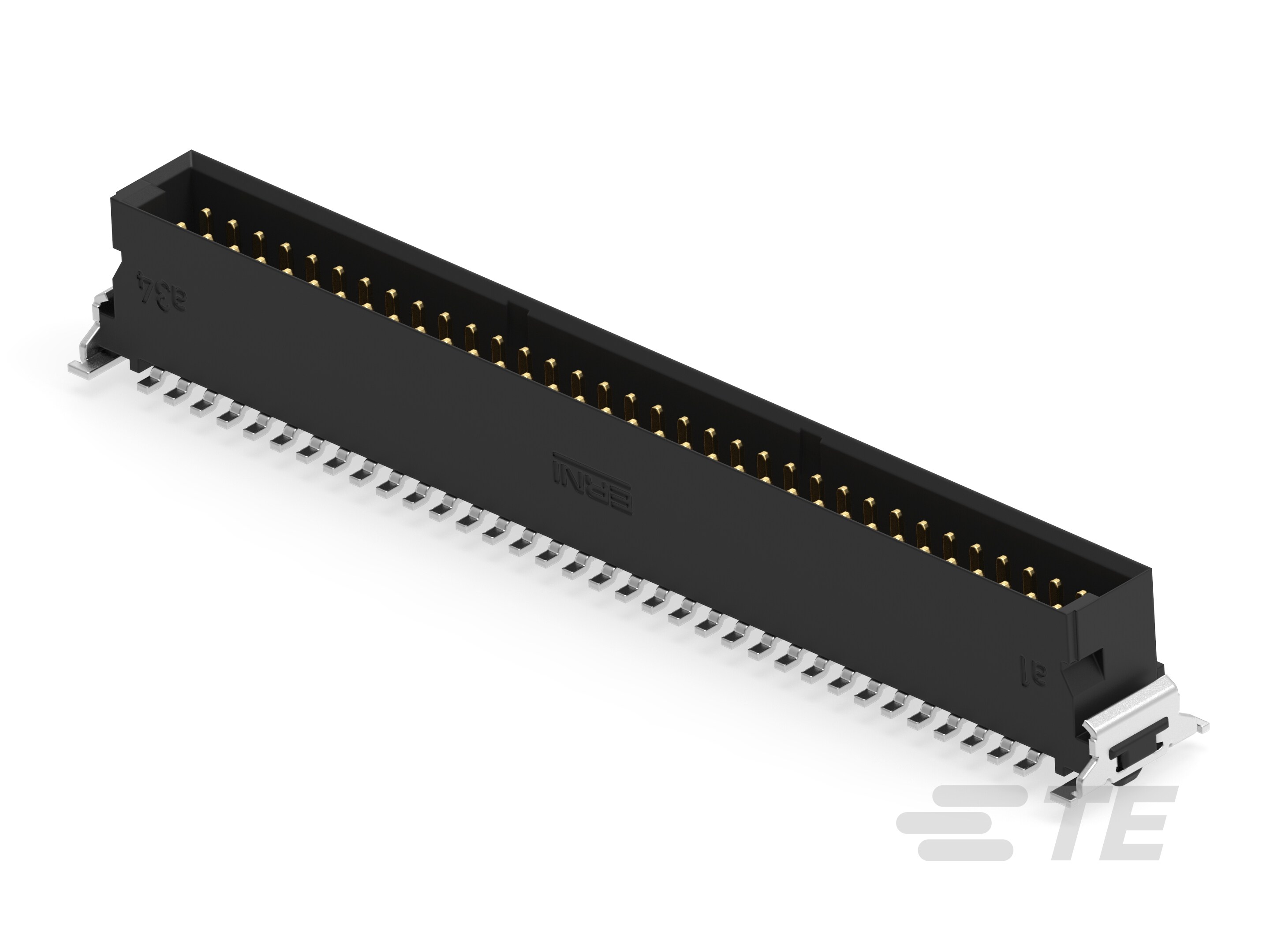

Specification	244839-E

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.157 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1.7 A
Fastening Type	Push-Pull
Features	Solder Retention, Pick and Place, Board Guide
Insulation Color	Black
Insulation Height	0.266 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	68
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Shrouding	Shrouded - 4 Wall
Style	Board, Board or Cable
Termination	Solder

ERNI SMC Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Pitch - Mating	Contact Finish - Post	Connector Type	Number of Rows	Mounting Type	Number of Positions Loaded	Fastening Type	Contact Type	Features	Contact Finish - Mating	Style	Termination	Insulation Color	Number of Positions	Current Rating (Per Contact)	Row Spacing - Mating	Material Flammability Rating	Insulation Height	Contact Shape	Contact Length - Mating	Insulation Material	Contact Material	Shrouding	Contact Length - Post	Overall Contact Length	Wire Gauge	Color	Cable Pitch	Row Spacing	Cable Termination	Board-Side Pitch	Contact Finish	Pitch	Convert From (Adapter End)	Convert To (Adapter End)
TE Connectivity AMP Connectors 154808-E	125 °C	-55 °C	0.05 in	Tin	Receptacle	2	Surface Mount	All	Push-Pull	Female Socket	Board Guide Pick and Place Solder Retention	Gold	Board	Solder	Black	68	1.7 A	0.05 in	UL94 V-0	0.246 in
TE Connectivity AMP Connectors 474356-E	125 °C	-55 °C -40 °C	0.05 in	Tin	Header	2	Surface Mount Through Hole	All	Push-Pull	Male Pin	Board Guide Solder Retention	Gold	Board Board or Cable Cable/Wire	Solder	Black	50	1.7 A	0.05 in	UL94 V-0		Rectangular Square	0.157 in	Liquid Crystal Polymer (LCP)	Copper Alloy	Shrouded - 4 Wall
TE Connectivity AMP Connectors 064002-E	125 °C	-55 °C	0.05 in	Tin	Header	2	Through Hole	All	Push-Pull	Male Pin		Gold	Board Board or Cable	Press-Fit Solder	Black	12	1.7 A	0.05 in	UL94 V-0	0.323 in	Square	0.157 in	Liquid Crystal Polymer (LCP)	Copper Alloy	Shrouded - 4 Wall	0.11 in	0.394 in
TE Connectivity AMP Connectors 354064-E	125 °C	-55 °C	0.05 in	Tin	Receptacle	2	Surface Mount	All	Push-Pull	Female Socket	Board Guide Pick and Place Solder Retention	Gold	Board	Solder	Black	32	1.7 A	0.05 in	UL94 V-0	0.356 in
TE Connectivity AMP Connectors 354080-E	125 °C	-55 °C	0.05 in	Tin	Receptacle	2	Right Angle Surface Mount	All	Push-Pull	Female Socket	Board Guide Solder Retention	Gold	Board	Solder	Black	32	1.7 A	0.05 in	UL94 V-0	0.152 in
TE Connectivity AMP Connectors 244629-E					DIP Header Header Ribbon Cable	2	Surface Mount	All			Board Guide					26												30 AWG	Black	0.05 in	0.085 in	IDC	0.05 in	Tin
TE Connectivity AMP Connectors 364717-E						2	Free Hanging (In-Line)									68															0.05 in				0.05 in	Male Pins Plug	Male Pins Plug
TE Connectivity AMP Connectors 234210-E	125 °C	-55 °C	0.05 in	Tin	Header	2	Surface Mount	All	Latch Holder	Male Pin	Board Guide Pick and Place	Gold	Board Board or Cable Cable/Wire	Solder	Black	80	1.7 A	0.05 in	UL94 V-0	0.388 in	Square	0.157 in	Liquid Crystal Polymer (LCP)	Copper Alloy	Shrouded - 4 Wall
TE Connectivity AMP Connectors 364095-E						2	Free Hanging (In-Line)									12															0.05 in				0.05 in	Male Pins Plug	Male Pins Plug
TE Connectivity AMP Connectors 244858-E	125 °C	-55 °C	0.05 in	Tin	Header	2	Surface Mount	All	Push-Pull	Male Pin	Board Guide Pick and Place Solder Retention	Gold	Board Board or Cable	Solder	Black	80	1.7 A	0.05 in	UL94 V-0	0.325 in	Square	0.157 in	Liquid Crystal Polymer (LCP)	Copper Alloy	Shrouded - 4 Wall
