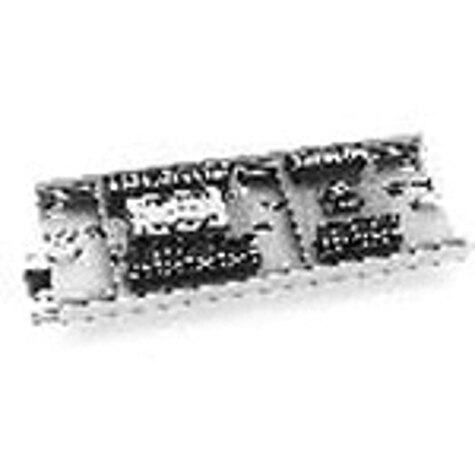

1776600-1
ObsoleteTE Connectivity AMP Connectors
TERMINAL BLOCK INTERFACE MODULES 2M16DPL=ASSEMBLY DIP & ZIF SOCK
1776600-1
ObsoleteTE Connectivity AMP Connectors
TERMINAL BLOCK INTERFACE MODULES 2M16DPL=ASSEMBLY DIP & ZIF SOCK
Description
General part information
1776600-1
TERMINAL BLOCK INTERFACE MODULES 2M16DPL=ASSEMBLY DIP & ZIF SOCK
Technical Specifications
Parameters and characteristics for this part
| Specification | 1776600-1 |
|---|---|
| Control Side Connection | DIP Socket |
| Control Side Connection Width | 0.3 in |
| Current Rating (Per Contact) | 10 A |
| Length | 2 in |
| Operating Temperature | 120 °C |
| Positions / Poles | 16 |
| Process Side Connection | Terminal Blocks, Screw Connection |
| Voltage - Rated | 300 VAC |
| Width | 2.75 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
