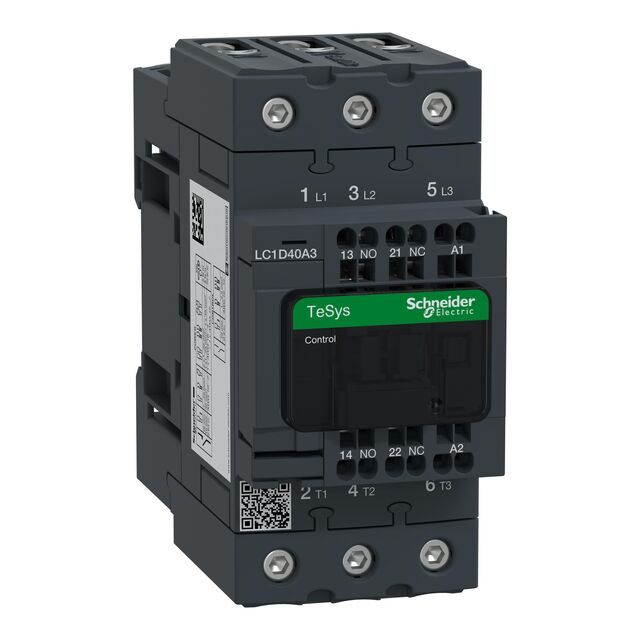

LC1D40A3P7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR AC3 440V 40A S
LC1D40A3P7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK CTR AC3 440V 40A S
Description
General part information
LC1D40A3P7
TESYS 3P EVLK CTR AC3 440V 40A S
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D40A3P7 |
|---|---|
| Coil Voltage | 230 VDC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 40 A |
| Features | Suppressor |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 195.5 VDC |
| Must Release Voltage | 69 VAC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
