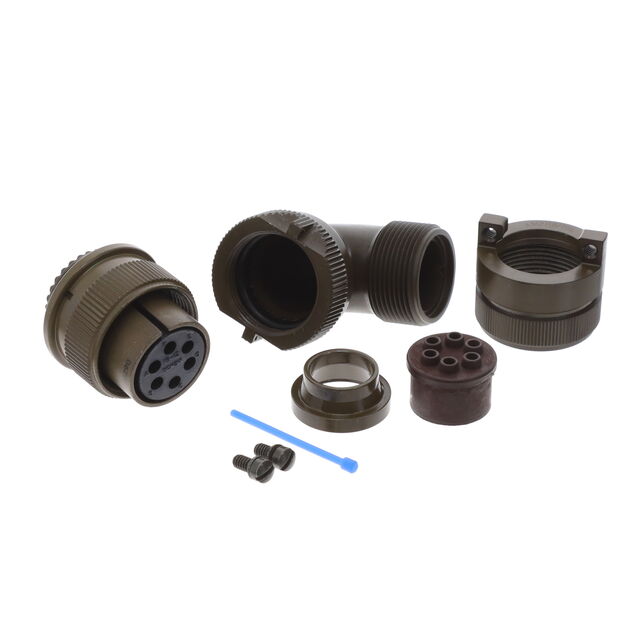

MS3108E18-12S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3108E18-12S
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3108E18-12S | MS3108E18 Series |
|---|---|---|
| - | - | |
| Applications | Military, Marine | Military, Marine |
| Cable Opening [custom] | 0.531 in | 0.531 in |
| Cable Opening [custom] | 13.49 mm | 13.49 mm |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Silver | Silver |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 13 A | 13 - 23 A |
| Features | Coupling Nut, Cable Clamp | Coupling Nut, Cable Clamp |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | 6 | 4 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-5015 | MIL-5015, MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 18-12 | 18-12, 18-4, 18-8 |
| Shell Size - Insert | - | 1 |
| Shell Size - Insert | - | 18 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | - | 900 - 1250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 33.32 | |
| 10 | $ 29.17 | |||
| 25 | $ 27.91 | |||
| 50 | $ 27.01 | |||
| 100 | $ 26.11 | |||
| 250 | $ 24.67 | |||
MS3108E18 Series
CONN PLUG FMALE 10P SOLDER CUP
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Insert Material | Shell Material | Shell Finish | Applications | Shielding | Features | Contact Finish - Mating | Connector Type | Number of Positions | Mounting Type | Orientation | Primary Material | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Ingress Protection | Qualification | Current Rating (Amps) | Grade | Cable Opening [custom] | Cable Opening [custom] | Shell Size - Insert | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3108E18-1S | Olive Drab | -55 °C | 125 °C | Copper Alloy | Neoprene | Aluminum Alloy | Olive Drab Chromate over Cadmium | Marine, Military | Unshielded | Cable Clamp, Coupling Nut | Silver | Female Sockets, Plug | 10 | Free Hanging (In-Line), Right Angle | N | Metal | 1 | 18 | Environment Resistant | MIL-5015 | ||||||
Amphenol Industrial Operations MS3108E18-12S | Olive Drab | -55 °C | 125 °C | Copper Alloy | Neoprene | Aluminum Alloy | Olive Drab Chromate over Cadmium | Marine, Military | Unshielded | Cable Clamp, Coupling Nut | Silver | Female Sockets, Plug | 6 | Free Hanging (In-Line), Right Angle | N | Metal | Environment Resistant | MIL-DTL-5015 | 13 A | Military | 0.531 in | 13.49 mm | 18-12 | |||
Amphenol Industrial Operations MS3108E18-25P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E18-20S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E18-4S | Olive Drab | -55 °C | 125 °C | Copper Alloy | Neoprene | Aluminum Alloy | Olive Drab Chromate over Cadmium | Marine, Military | Unshielded | Cable Clamp, Coupling Nut | Silver | Female Sockets, Plug | 4 | Free Hanging (In-Line), Right Angle | N | Metal | Environment Resistant | MIL-DTL-5015 | 13 A | Military | 0.531 in | 13.49 mm | 18-4 | 900 VAC, 1250 VDC | ||
Amphenol Industrial Operations MS3108E18-25S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E18-27S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E18-27P | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E18-24S | ||||||||||||||||||||||||||
Amphenol Industrial Operations MS3108E18-28P |
Description
General part information
MS3108E18 Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
