Description
General part information

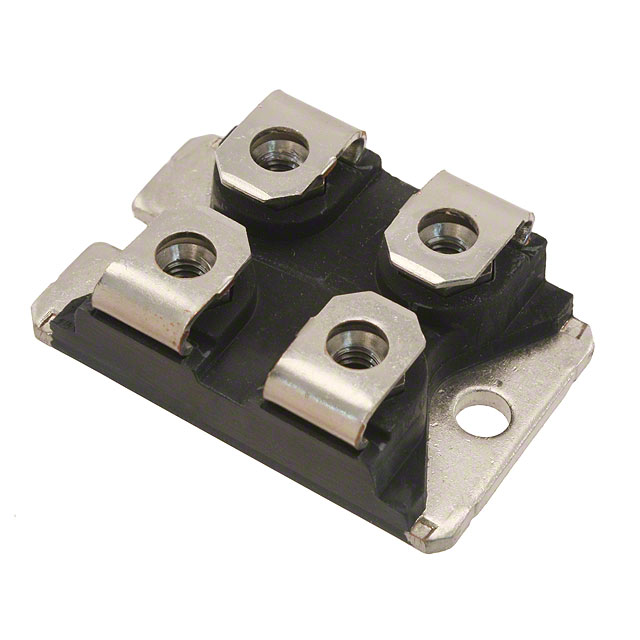

TGHGCR0005FE
500 µOhms ±1% 100W Thick Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | TGHGCR0005FE |
|---|---|
| Coating | Epoxy Coated |
| Composition | Thick Film |
| Features | Current Sense, Non-Inductive |
| Height - Seated (Max) | 0.483 in |
| Housing Type | Epoxy Coated |
| Lead Style | M4 Threaded |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOT-227-4 |
| Power (Watts) | 100 W |
| Resistance | 0.5 mOhms |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 0.98 in |
| Temperature Coefficient | 60 ppm/°C |
| Tolerance | 1 % |
