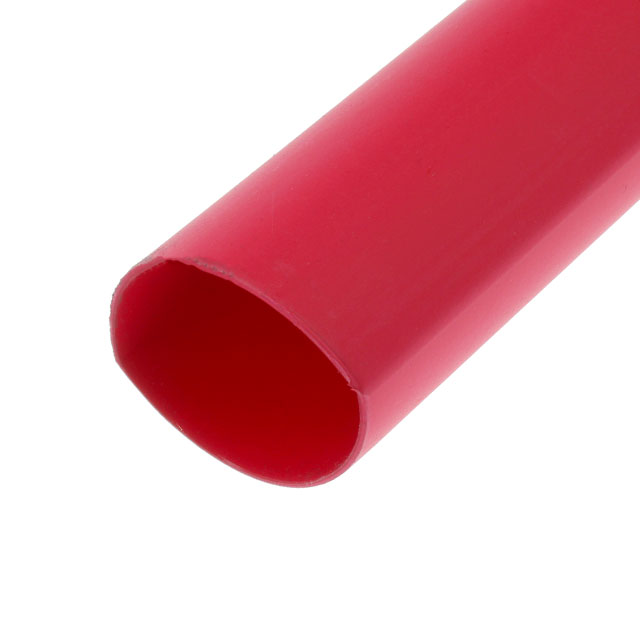

EPS300-1-48"-RED-24 PCS

Active

3M (TC)

HEATSHRINK TUBING 1-48" 1=1PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

EPS300-1-48"-RED-24 PCS

Active

3M (TC)

HEATSHRINK TUBING 1-48" 1=1PC

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EPS300-1-48"-RED-24 PCS

Color	Red
Features	Corrosion Resistant, Water Resistant, Self Extinguishing, Adhesive Lined, Fluid Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	8.13 mm
Inner Diameter - Recovered [diameter]	0.32 "
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.1 in
Recovered Wall Thickness	2.54 mm
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	121 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

EPS-300 Series

Part	Shelf Life Start	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Shrink Temperature	Type	Material	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Length	Length	Length	Length
3M (TC) EPS-300-H-1/8-48-BK	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Black	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C	3.18 mm	0.125 "	1.02 mm	0.04 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Header Label Self Extinguishing Water Resistant	1.02 mm	0.04 in	1.22 m	4 ft
3M (TC) EPS-300-3/8-BLACK	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Black	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C	9.53 mm	0.375 in	1.4 mm	0.055 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Self Extinguishing Water Resistant	3.05 mm	0.12 in	1.22 m	4 ft
3M (TC) EPS-300 3/16"BL48"BX	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Black	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C	4.75 mm	0.187 in	1.02 mm	0.04 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Self Extinguishing Water Resistant	1.57 mm	0.062 in			0.75 " 1 in 1.5 " 2 " 3 "	19.05 mm 25.4 mm 38.1 mm 50.8 mm 76.2 mm	0.062 ' 0.083 ft 0.125 ' 0.167 ' 0.25 ft
3M (TC) EPS300-3/4-6"-BLACK-10-10 PC PKS	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Black	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C			2.16 mm	0.085 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Self Extinguishing Water Resistant	6.35 mm	0.25 in			6 "	152.4 mm		0.5 '
3M (TC) EPS300-3/4-48"-RED-45 PCS	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Red	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C			2.16 mm	0.085 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Self Extinguishing Water Resistant	6.35 mm	0.25 in	1.22 m	4 ft
3M (TC) EPS-300-3/4-48-BLACK-BULK	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Black	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C			2.16 mm	0.085 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Self Extinguishing Water Resistant	6.35 mm	0.25 in	1.22 m	4 ft
3M (TC) EPS300-3/4-48"-CLEAR-45 PCS	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Clear	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C			2.16 mm	0.085 in	Adhesive Lined Corrosion Resistant Fluid Resistant Self Extinguishing Water Resistant	6.35 mm	0.25 in	1.22 m	4 ft
3M (TC) EPS300-1-48"-RED-24 PCS	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Red	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C	25.4 mm	1 in	2.54 mm	0.1 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Self Extinguishing Water Resistant	8.13 mm	0.32 "	1.22 m	4 ft
3M (TC) EPS-300-H-1-48-BK	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Black	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C	25.4 mm	1 in	2.54 mm	0.1 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Header Label Self Extinguishing Water Resistant	8.13 mm	0.32 "	1.22 m	4 ft
3M (TC) EPS300-1/4-48"-BLACK-HDR-12 PCS	Date of Manufacture	1	3	27 °C 80 °F	10 °C	Black	121 °C	Tubing Flexible	Polyolefin (PO) Irradiated	120 Months	-55 °C	110 °C	6.35 mm	0.25 in	1.02 mm	0.04 in	Adhesive Lined Corrosion Resistant Flame Retardant Fluid Resistant Header Label Self Extinguishing Water Resistant	2.03 mm	0.08 in	1.22 m	4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.42
		5	$ 17.20
		10	$ 15.59
		25	$ 14.51
		50	$ 13.97
		100	$ 13.65

Description

General part information

EPS-300 Series

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 3 to 1 Red 4.00' (1.22m)

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet
