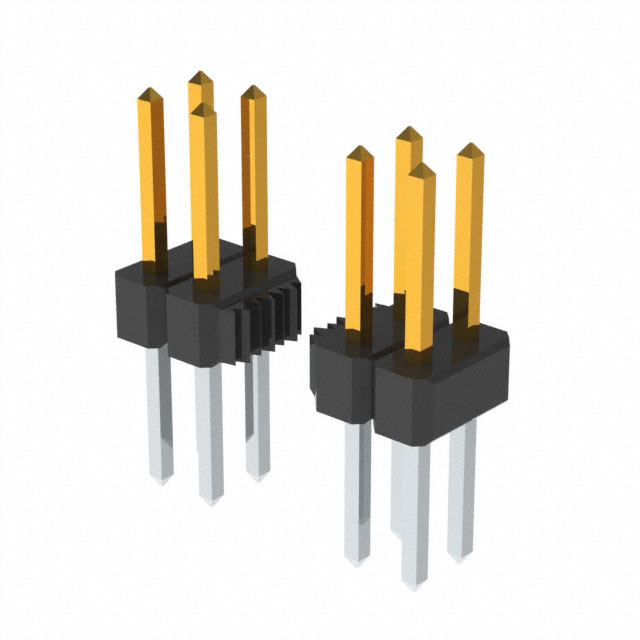

PBC35DABN

Active

Sullins Connector Solutions

CONN HEADER VERT 70POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC35DABN

Active

Sullins Connector Solutions

CONN HEADER VERT 70POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC35DABN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post	0.23 in
Contact Length - Post	5.84 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	70
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	14.22 mm
Overall Contact Length	0.56 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC35 Series

Part	Number of Positions	Style	Number of Positions Loaded	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Mating	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Contact Material	Contact Shape	Termination	Material Flammability Rating	Contact Type	Mounting Type	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PBC35SFBN	35	Board to Board Cable	All	3 A	2.54 µm	100 µin	16.21 mm	0.638 in	Breakaway Header	Tin	0.318 "	8.08 mm	0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	1	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	0.22 in	5.58 mm	125 °C	-65 ░C
Sullins Connector Solutions PBC35SAFN	35	Board to Board Cable	All	3 A	2.54 µm	100 µin	24.13 mm	0.95 in	Breakaway Header	Tin	0.23 in		0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	1	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	0.62 in	15.75 mm	125 °C	-65 ░C	5.84 mm
Sullins Connector Solutions PBC35DAFN	70	Board to Board Cable	All	3 A	2.54 µm	100 µin	24.13 mm	0.95 in	Breakaway Header	Tin	0.23 in		0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	2	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	0.62 in	15.75 mm	125 °C	-65 ░C	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC35DABN	70	Board to Board Cable	All	3 A	2.54 µm	100 µin	14.22 mm	0.56 in	Breakaway Header	Tin	0.23 in		0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	2	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	0.23 in	5.84 mm	125 °C	-65 ░C	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PBC35SFDN	35	Board to Board Cable	All	3 A	2.54 µm	100 µin	21.29 mm	0.838 in	Breakaway Header	Tin	0.318 "	8.08 mm	0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	1	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm			125 °C	-65 ░C				10.67 mm	0.42 in
Sullins Connector Solutions PBC35DADN	70	Board to Board Cable	All	3 A	2.54 µm	100 µin	19.05 mm	0.75 in	Breakaway Header	Tin	0.23 in		0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	2	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm			125 °C	-65 ░C	5.84 mm	2.54 mm	0.1 in	10.67 mm	0.42 in
Sullins Connector Solutions PBC35SBAN	35	Board to Board Cable	All	3 A	2.54 µm	100 µin			Breakaway Header	Tin	0.23 in		0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.14 in	3.56 mm	1	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole Right Angle	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm	0.1 in	2.54 mm	125 °C	-65 ░C	5.84 mm
Sullins Connector Solutions PBC35SBDN	35	Board to Board Cable	All	3 A	2.54 µm	100 µin			Breakaway Header	Tin	0.23 in		0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.14 in	3.56 mm	1	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole Right Angle	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm			125 °C	-65 ░C	5.84 mm			10.16 mm	0.4 in
Sullins Connector Solutions PBC35SFAN	35	Board to Board Cable	All	3 A	2.54 µm	100 µin	13.67 mm	0.538 "	Breakaway Header	Tin	0.318 "	8.08 mm	0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	1	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm			125 °C	-65 ░C				3.05 mm	0.12 in
Sullins Connector Solutions PBC35SAHN	35	Board to Board Cable	All	3 A	2.54 µm	100 µin	29.21 mm	1.15 in	Breakaway Header	Tin	0.23 in		0.1 in	2.54 mm	Unshrouded	Gold	Push-Pull	0.1 in	2.54 mm	1	Phosphor Bronze	Square	Solder	UL94 V-0	Male Pin	Through Hole	Black	Polybutylene Terephthalate (PBT)	10 çin	0.25 çm			125 °C	-65 ░C	5.84 mm			20.83 mm	0.82 in
