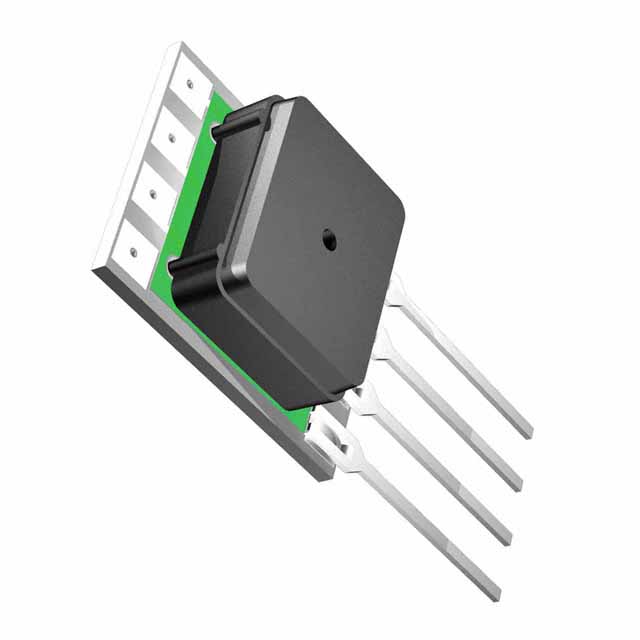

15 PSI-A-PRIME-MINI

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA .09V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA .09V

Technical Specifications

Parameters and characteristics for this part

SENSOR 15PSIA .09V

Part	Operating Pressure [custom]	Operating Pressure [custom]	Termination Style	Output Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Voltage - Supply	Output [Max]	Output [Min]	Mounting Type	Port Style	Features	Applications
Amphenol All Sensors Corporation 15 PSI-A-PRIME-MINI	15 PSI	103.42 kPa	PC Pin	Wheatstone Bridge	4-SIP Module	-25 °C	85 °C	60 PSI	413.69 kPa	0.3 %	16 VDC	90 mV	0 mV	Through Hole	No Port	Temperature Compensated	Board Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 103.50

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute 0 mV ~ 90 mV (12V) 4-SIP Module

Technical documentation and resources

No documents available
