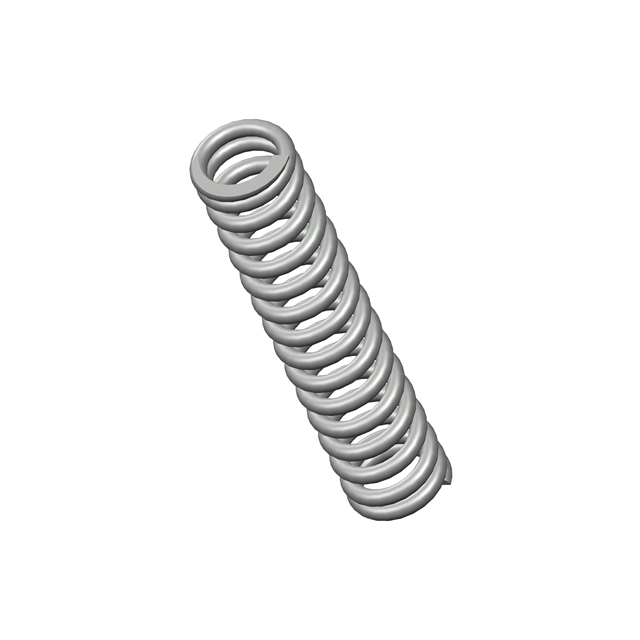

10115CS
ActiveCentury Spring Corp
COMP O=1.000,L= 4.88,W= .162
10115CS
ActiveCentury Spring Corp
COMP O=1.000,L= 4.88,W= .162
Description
General part information
10115CS
COMP O=1.000,L= 4.88,W= .162
Technical Specifications
Parameters and characteristics for this part
| Specification | 10115CS |
|---|---|
| Diameter - Inside | 0.676 in |
| Diameter - Outside | 1 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 4.88 in |
| Material | Spring Steel |
| Rate (lbs/in) | 120 lbs/in |
| Type | Compression |
| Wire Diameter | 0.162 in |
