EH6MD2X
ActiveSwitchcraft Inc.

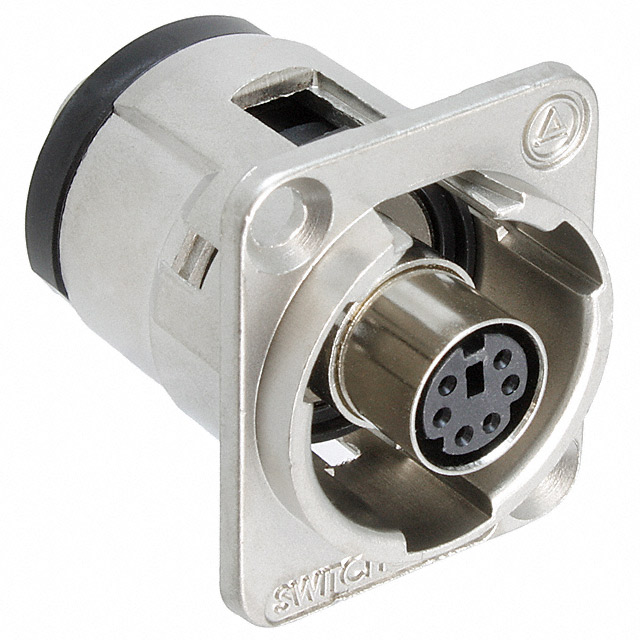

CONN ADAPTER 6P-6P F-F PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EH6MD2X
ActiveSwitchcraft Inc.
CONN ADAPTER 6P-6P F-F PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EH6MD2X | EH6MD2 Series |
|---|---|---|
| Connector Style | Standard | Standard |
| Convert From (Adapter End) | Female Sockets | Female Sockets |
| Convert To (Adapter End) | Female Sockets | Female Sockets |
| Fastening Type | Latch Lock | Latch Lock |
| Features | - | Mounting Hardware |
| Housing Color | Silver | Silver, Black |
| Housing Finish | Nickel | Nickel |
| Housing Material | Zinc Alloy | Zinc Alloy |
| Mounting Feature | Flange | Flange |
| Number of Positions (Convert From) | 6 | 6 |
| Number of Positions (Convert To) | 6 | 6 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation (Convert From) | Keyed | Keyed |
| Orientation (Convert To) | Keyed | Keyed |
| Shell Size - Insert (Convert From) | MiniDIN, PS/2 | MiniDIN, PS/2 |
| Shell Size - Insert (Convert To) | MiniDIN, PS/2 | MiniDIN, PS/2 |
| Shielding | Shielded | Shielded |
EH6MD2 Series
CONN ADAPTER 6P-6P F-F PNL MNT
| Part | Housing Material | Fastening Type | Housing Color | Shell Size - Insert (Convert To) | Number of Positions (Convert To) | Convert From (Adapter End) | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Shell Size - Insert (Convert From) | Orientation (Convert To) | Shielding | Convert To (Adapter End) | Number of Positions (Convert From) | Connector Style | Orientation (Convert From) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EH6MD2X | Zinc Alloy | Latch Lock | Silver | MiniDIN, PS/2 | 6 | Female Sockets | Nickel | 85 °C | -55 °C | Flange | MiniDIN, PS/2 | Keyed | Shielded | Female Sockets | 6 | Standard | Keyed | |
Switchcraft Inc. EH6MD2B | Zinc Alloy | Latch Lock | Black | MiniDIN, PS/2 | 6 | Female Sockets | Nickel | 85 °C | -55 °C | Flange | MiniDIN, PS/2 | Keyed | Shielded | Female Sockets | 6 | Standard | Keyed | |
Switchcraft Inc. EH6MD2PKG | Zinc Alloy | Latch Lock | Silver | MiniDIN, PS/2 | 6 | Female Sockets | Nickel | 85 °C | -55 °C | Flange | MiniDIN, PS/2 | Keyed | Shielded | Female Sockets | 6 | Standard | Keyed | Mounting Hardware |
Switchcraft Inc. EH6MD2BX | Zinc Alloy | Latch Lock | Black | MiniDIN, PS/2 | 6 | Female Sockets | Nickel | 85 °C | -55 °C | Flange | MiniDIN, PS/2 | Keyed | Shielded | Female Sockets | 6 | Standard | Keyed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.31 | |
| 10 | $ 12.66 | |||
Description
General part information
EH6MD2 Series
Circular Connector Standard 6/6 Female Sockets/Female Sockets Panel Mount
