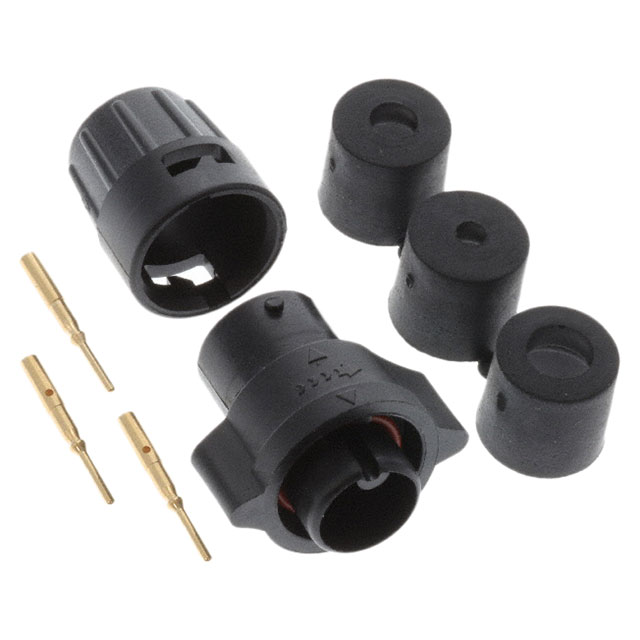

Specification	W6382-3PG-P-3DC

Applications	Instrumentation, Automotive, Communication Systems
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell, Coupling Nut, UV Resistant
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP66, IP67, IP68
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Thermoplastic
Shielding	Unshielded
Termination	Solder Cup
Voltage Rating	300 VAC/DC
Voltage Rating (Type)	DC

Insta-Click Series

...

Part	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Color	Cable Opening (Min)	Cable Opening (Max)	Orientation	Insert Material	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Shell Material	Termination	Primary Material	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Contact Material	Mounting Type	Current Rating	Shielding	Applications	Backshell Material, Plating	Features	Mounting Feature
SWITCHCRAFT/CONXALL W6382-3PG-P-519	Male Pins Plug	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black	0.19 in	0.21 in	Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Solder Cup	Plastic	3	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant
SWITCHCRAFT/CONXALL W7882-10PG-P-300	Male Pins Receptacle	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black			Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Solder Cup	Plastic	10	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead Front Side Nut
SWITCHCRAFT/CONXALL W7282-6PG-P-300	Male Pins Receptacle	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black			Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Solder Cup	Plastic	6	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead Front Side Nut
SWITCHCRAFT/CONXALL W6280-2SG-P-528	Female Sockets Plug	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black	0.26 in	0.28 in	Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Crimp	Plastic	2	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant
SWITCHCRAFT/CONXALL W7280-8PG-P-300	Male Pins Receptacle	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black			Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Crimp	Plastic	8	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead Front Side Nut
SWITCHCRAFT/CONXALL W6280-5PG-P-3DC	Male Pins Plug	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black			Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Crimp	Plastic	5	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant
SWITCHCRAFT/CONXALL W6380-2PG-P-528	Male Pins Plug	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black	0.26 in	0.28 in	Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Crimp	Plastic	2	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant
SWITCHCRAFT/CONXALL W6880-9PG-P-528	Male Pins Plug	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black	0.26 in	0.28 in	Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Crimp	Plastic	9	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant
SWITCHCRAFT/CONXALL W6880-9SG-P-522	Female Sockets Plug	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black	0.22 in	0.25 in	Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Crimp	Plastic	9	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Free Hanging (In-Line)	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	Backshell Coupling Nut UV Resistant
SWITCHCRAFT/CONXALL W7882-9PG-P-3ES	Male Pins Receptacle	Dust Tight Water Resistant Waterproof	IP66 IP67 IP68	Black			Keyed	Thermoplastic	Gold	300 VAC/DC	DC	Thermoplastic	Solder Cup	Plastic	9	-40 °C	85 °C	Bayonet Lock	Copper Alloy	Panel Mount	Varies by Wire Gauge	Unshielded	Automotive Communication Systems Instrumentation	Thermoplastic	UV Resistant	Bulkhead Front Side Nut
