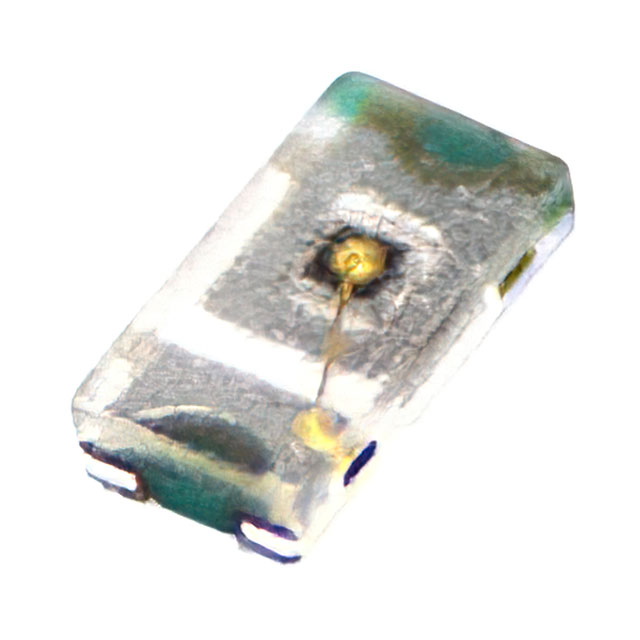

B1811UD--20C000413U1930
ActiveHarvatek Corporation
LED ORANGE CLEAR SMD
B1811UD--20C000413U1930
ActiveHarvatek Corporation
LED ORANGE CLEAR SMD
Description
General part information
B1811UD--20C000413U1930
Orange 605nm LED Indication - Discrete 2V 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | B1811UD--20C000413U1930 |
|---|---|
| Color | Orange |
| Current - Test | 20 mA |
| Height (Max) | 0.35 mm |
| Lens Length | 1 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Transparency | Clear |
| Lens Width | 0.5 mm |
| Millicandela Rating | 112.5 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 1 mm |
| Size / Dimension Width | 0.5 mm |
| Viewing Angle (Horizontal) | 75 ° |
| Viewing Angle (Vertical) | 140 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 605 nm |
| Wavelength - Peak | 611 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
