SML-H1505SIC-TR

Active

Lumex Opto/Components Inc.

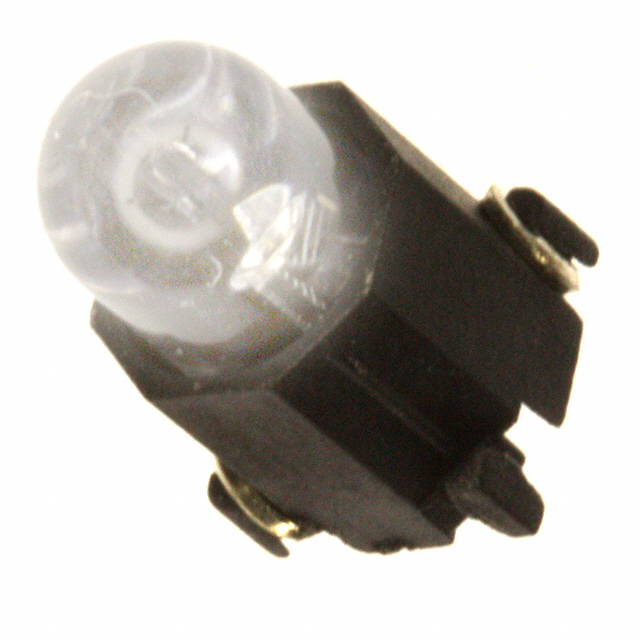

LED RED CLEAR SMD DOME LED SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-H1505SIC-TR

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD DOME LED SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.29
		10	$ 0.81
		100	$ 0.60
	Digi-Reel®	1	$ 1.29
		10	$ 0.81
		100	$ 0.60
	Tape & Reel (TR)	350	$ 0.60
		700	$ 0.57

Description

General part information

SML-H1505 Series

Red LED Indication - Discrete 2V 2-SMD, 1505

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SML-H1505SIC-TR	SML-H1505 Series

Color	Red	Blue, Red, Green, White
Configuration	Standard	Standard, Common Cathode, Independent
Current - Test	20 mA	20 mA
Current - Test	-	20 mA
Current - Test	-	20 mA
Current - Test	-	20 mA
Height (Max) [Max] [z]	11 mm	11 mm
Lens Color	Colorless	Colorless, White, Green
Lens Size [diameter]	4.9 mm	4.9 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear, Diffused
Millicandela Rating	700 mcd	200 - 14000 mcd
Millicandela Rating	-	2200 mcd
Millicandela Rating	-	1100 mcd
Millicandela Rating	-	600 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	2-SMD, 1505	2-SMD, 1505
Size / Dimension [x]	6.51 mm	6.51 mm
Size / Dimension [y]	6.51 mm	6.51 mm
Supplier Device Package	Surface Mounted Dome LED	Surface Mounted Dome LED
Viewing Angle	60 °	30 - 70 °
Viewing Angle	-	40 °
Voltage - Forward (Vf) (Typ)	2 V	2 - 3.4 V
Wavelength - Peak	635 nm	520 - 635 nm
Wavelength - Peak	-	520 nm
Wavelength - Peak	-	465 nm
Wavelength - Peak	-	635 nm

SML-H1505 Series

LED BLUE CLEAR SMD DOME LED SMD

Part	Package / Case	Lens Style	Color	Configuration	Current - Test	Mounting Type	Millicandela Rating	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Lens Transparency	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Lens Color	Height (Max) [Max] [z]	Viewing Angle [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Viewing Angle	Wavelength - Peak
Lumex Opto/Components Inc. SML-H1505USBC-TR	2-SMD, 1505	Round with Domed Top	Blue	Standard	20 mA	Surface Mount	2500 mcd	Surface Mounted Dome LED	6.51 mm	6.51 mm	Clear	4.9 mm	3.3 V	Colorless	11 mm	40 °
Lumex Opto/Components Inc. SML-H1505SIUGUBWTR	2-SMD, 1505	Round with Domed Top	Blue, Green, Red	Common Cathode		Surface Mount		Surface Mounted Dome LED	6.51 mm	6.51 mm	Diffused	4.9 mm	2.2 V, 3.4 V, 3.4 V	White	11 mm		2200 mcd	1100 mcd	600 mcd	520 nm	465 nm	635 nm	20 mA	20 mA	20 mA	60 °
Lumex Opto/Components Inc. SML-H1505UPGD-TR	2-SMD, 1505	Round with Domed Top	Green	Independent	20 mA	Surface Mount	2200 mcd	Surface Mounted Dome LED	6.51 mm	6.51 mm	Diffused	4.9 mm	3.3 V	Green	11 mm											60 °	520 nm
Lumex Opto/Components Inc. SML-H1505UPGC-TR	2-SMD, 1505	Round with Domed Top	Green	Standard	20 mA	Surface Mount	7000 mcd	Surface Mounted Dome LED	6.51 mm	6.51 mm	Clear	4.9 mm	3.3 V	Colorless	11 mm											45 °	520 nm
Lumex Opto/Components Inc. SML-H1505UWC-TR	2-SMD, 1505	Round with Domed Top	White	Standard	20 mA	Surface Mount	14000 mcd	Surface Mounted Dome LED	6.51 mm	6.51 mm	Clear	4.9 mm	3.3 V	Colorless	11 mm											30 °
Lumex Opto/Components Inc. SML-H1505SIC-TR	2-SMD, 1505	Round with Domed Top	Red	Standard	20 mA	Surface Mount	700 mcd	Surface Mounted Dome LED	6.51 mm	6.51 mm	Clear	4.9 mm	2 V	Colorless	11 mm											60 °	635 nm
Lumex Opto/Components Inc. SML-H1505SUGC-TR	2-SMD, 1505	Round with Domed Top	Green	Standard	20 mA	Surface Mount	200 mcd	Surface Mounted Dome LED	6.51 mm	6.51 mm	Clear	4.9 mm	2 V	Colorless	11 mm											68 °	575 nm
Lumex Opto/Components Inc. SML-H1505SIUGUBCTR	2-SMD, 1505	Round with Domed Top	Blue, Green, Red	Common Cathode		Surface Mount		Surface Mounted Dome LED	6.51 mm	6.51 mm	Clear	4.9 mm	2.2 V, 3.4 V, 3.4 V	Colorless	11 mm		2200 mcd	1100 mcd	600 mcd	520 nm	465 nm	635 nm	20 mA	20 mA	20 mA	70 °
