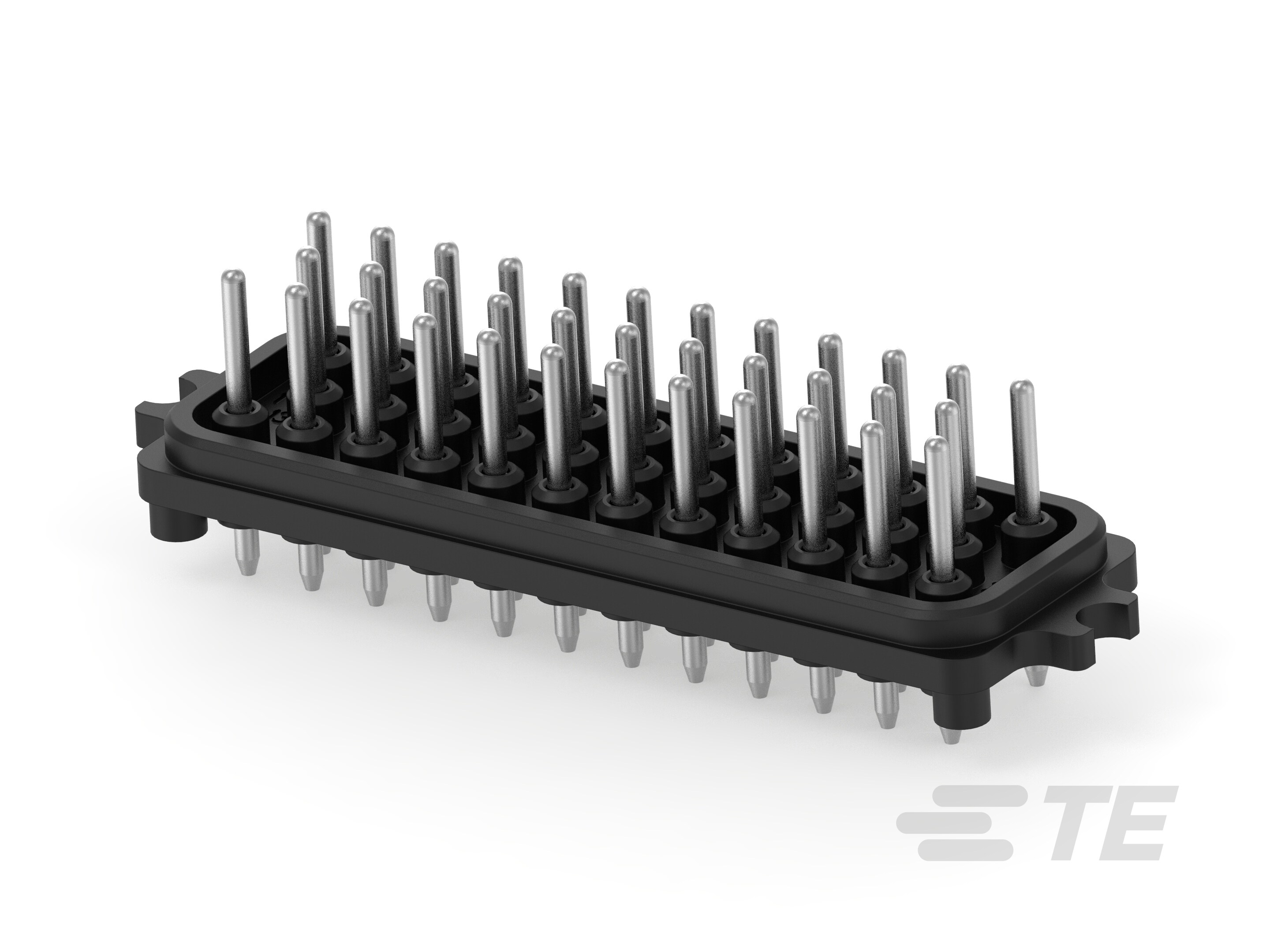

Specification	1103599-1

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	98.4 µin
Contact Length - Mating	0.116 in
Contact Length - Post	0.315 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	8 A
Fastening Type	Push-Pull
Insulation Height	0.258 in
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Through Hole
Number of Positions	35
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	0.689 in
Pitch - Mating	0.157 in
Row Spacing - Mating	0.157 in
Shrouding	Unshrouded
Style	Board
Termination	Solder
Voltage Rating	250 V

AMPSEAL Series

...

Part	Row Spacing - Mating	Termination	Number of Rows	Number of Positions Loaded	Shrouding	Contact Type	Mounting Type	Pitch - Mating	Contact Finish - Mating	Current Rating	Features	Fastening Type	Voltage Rating (AC)	Voltage Rating (DC)	Insulation Material	Number of Positions	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Post	Insulation Color	Style	Contact Material	Contact Shape	Pitch	Contact Termination	Color	Note	Row Spacing	Voltage Rating	Current Rating	Applications	Contact Length - Post	Insulation Height	Accessory Type	For Use With/Related Products
TE Connectivity AMP Connectors 2492561-1	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Through Hole	0.157 in	Tin	8 A	Mounting Flange	Locking Ramp	250 VAC	159 VDC	Glass Filled Polybutylene Terephthalate (PBT)	8	Header	-40 °C	105 °C	Tin	Black	Board Cable/Wire	Brass	Circular
TE Connectivity AMP Connectors 2371884-4			3			Female Socket	Free Hanging (In-Line)				Connector Position Assurance (CPA) Terminal Position Assurance (TPA)	Latch Holder			Polybutylene Terephthalate (PBT)	23	Plug	-40 °C	105 °C						0.157 in	Crimp	Gray
TE Connectivity AMP Connectors 776164-6			3			Female Socket	Free Hanging (In-Line)					Latch Lock			Polybutylene Terephthalate (PBT)	35	Plug								0.157 in	Crimp	Orange	Contacts Not Included	0.157 in
TE Connectivity AMP Connectors 1-776231-4	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Through Hole	0.157 in	Gold-Palladium	0 A	Mounting Flange Sealed	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	35	Header	-40 °C	125 °C		Gray	Board Cable/Wire	Brass	Circular						250 V	Varies by Wire Gauge
TE Connectivity AMP Connectors 1-776228-2	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Through Hole	0.157 in	Gold-Palladium	0 A	Mounting Flange Sealed	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	23	Header	-40 °C	125 °C		Natural	Board Cable/Wire	Brass	Circular						250 V	Varies by Wire Gauge	Automotive Industrial
TE Connectivity AMP Connectors 2489696-1	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Right Angle Through Hole	0.157 in	Tin	8 A	Mounting Flange	Locking Ramp	250 VAC	159 VDC	Glass Filled Polybutylene Terephthalate (PBT)	8	Header	-40 °C	105 °C	Tin	Black	Board Cable/Wire	Brass	Circular									0.157 in	1.264 in
TE Connectivity AMP Connectors 776180-2	0.157 in	Solder	3	All	Shrouded - 4 Wall	Male Pin	Panel Mount Right Angle Through Hole	0.157 in	Tin	0 A	Board Guide Sealable	Locking Ramp			Glass Filled Polybutylene Terephthalate (PBT)	35	Header	-40 °C	105 °C		Natural	Board Cable/Wire	Brass	Circular						250 V	Varies by Wire Gauge	Automotive Industrial
TE Connectivity AMP Connectors 2389807-1																35																			Strain Relief
TE Connectivity AMP Connectors 776164-1			3			Female Socket	Free Hanging (In-Line)					Latch Lock			Polybutylene Terephthalate (PBT)	35	Plug								0.157 in	Crimp	Black	Contacts Not Included	0.157 in
TE Connectivity AMP Connectors 2458826-1											Sealed																								Cap (Cover)	AMPSEAL Connectors
