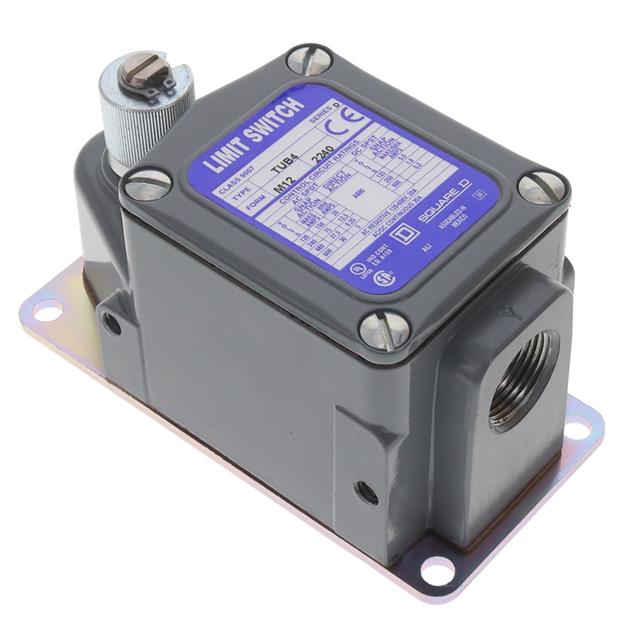

9007TUB4M12
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT SPDT 20A 120V
9007TUB4M12
ActiveSCHNEIDER ELECTRIC
SWITCH LIMIT SPDT 20A 120V
Description
General part information
9007TUB4M12
Switch SPDT (DB/DM) Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 9007TUB4M12 |
|---|---|
| Actuator Type | No Lever, Side Rotary |
| Circuit | SPDT (DB/DM) |
| Current Rating | 20 A, 5 A |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -23 °C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 120 VDC |
