B72220W2621K501
ActiveEPCOS - TDK Electronics
20MM, 625VAC , THERMO-FUSED TYPE
B72220W2621K501
ActiveEPCOS - TDK Electronics
20MM, 625VAC , THERMO-FUSED TYPE
Description
General part information
B72220W2621K501

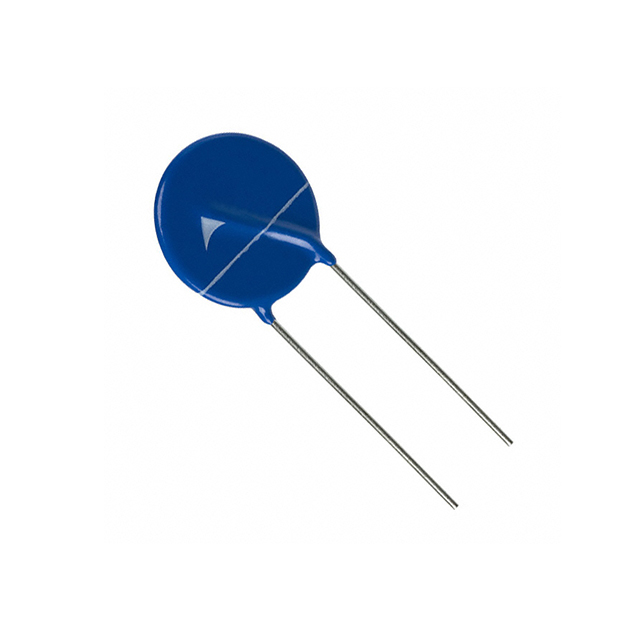

1 kV 10 kA Varistor 1 Circuit Through Hole Disc 20mm
Technical Specifications
Parameters and characteristics for this part
| Specification | B72220W2621K501 |
|---|---|
| Capacitance | 380 pF |
| Current - Surge | 10000 A |
| Energy | 400 J |
| Maximum AC Volts | 625 V |
| Maximum DC Voltage | 825 V |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Diameter | 20 mm |
| Package Name | Disc |
| Varistor Voltage (Max) | 1.1 kV |
| Varistor Voltage (Min) | 900 V |
| Varistor Voltage (Typ) | 1000 V |
