758-966
ObsoleteWAGO Corporation

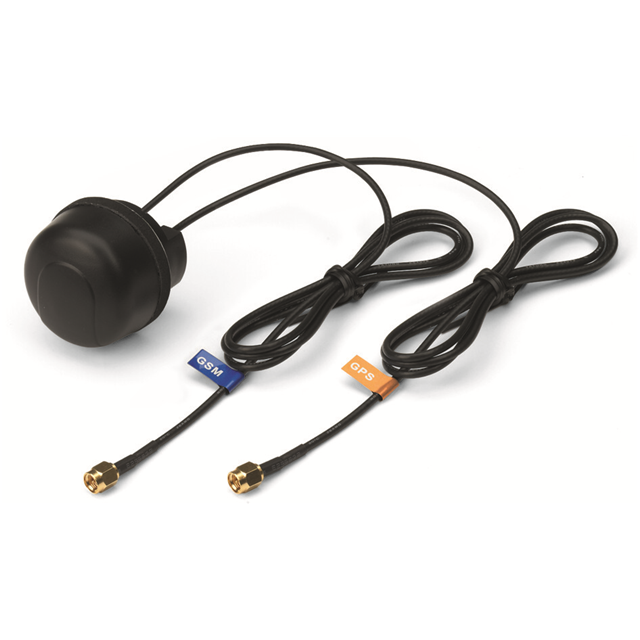

THEFT-PROOF COMBINATION ANTENNA;
758-966
ObsoleteWAGO Corporation
THEFT-PROOF COMBINATION ANTENNA;
Description
General part information
758-966
RF ANTENNA GSM, UMTS Dome SMA Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | 758-966 |
|---|---|
| Antenna Type | Dome |
| Applications | GSM, UMTS |
| Features | Cable, 2.5m |
| Frequency (Center/Band) | 2.1GHz, 850MHz, 1.9GHz, 1800MHz, 900MHz |
| Frequency (Center/Band) - 1 | 850 MHz |
| Frequency (Center/Band) - 2 | 900 MHz |
| Frequency (Center/Band) - 3 | 1.8 GHz |
| Frequency (Center/Band) - 4 | 1.9 GHz |
| Frequency (Center/Band) - 5 | 2.1 GHz |
| Frequency Group | Wide Band |
| Mounting Type | Magnetic |
| Number of Bands | 5 |
| RF Family/Standard | Cellular |
| Termination | SMA |
