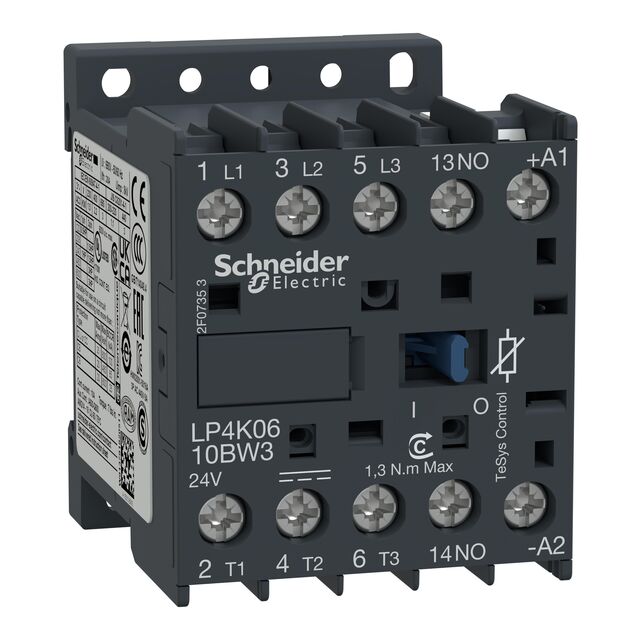

LP4K0610FW3
ActiveSCHNEIDER ELECTRIC
CONTACTOR
LP4K0610FW3
ActiveSCHNEIDER ELECTRIC
CONTACTOR
Description
General part information
LP4K0610FW3
CONTACTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | LP4K0610FW3 |
|---|---|
| Coil Voltage | 110 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 6 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 77 VAC |
| Must Release Voltage | 11 VDC |
| Operate Time | 20 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 3 pins |
| Release Time | 40 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
