Description
General part information

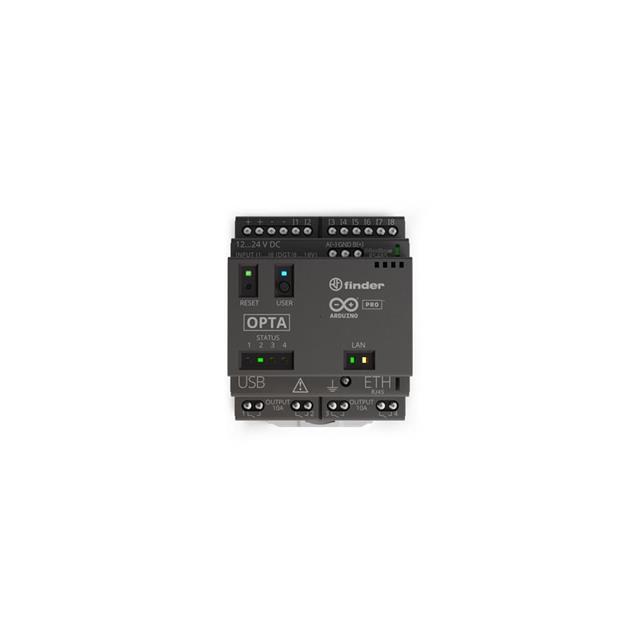

AFX00003
Programmable Logic Controller (PLC) DIN Rail 12 ~ 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | AFX00003 |
|---|---|
| Communications | USB, RS-485, Ethernet |
| Display Type | No Display |
| Expandable | Non-Expandable |
| Ingress Protection | IP20 |
| Input Types | Digital/Analog |
| Memory Size | 16 Mb |
| Mounting Type | DIN Rail |
| Number of Inputs | 8 |
| Number of Outputs | 4 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
