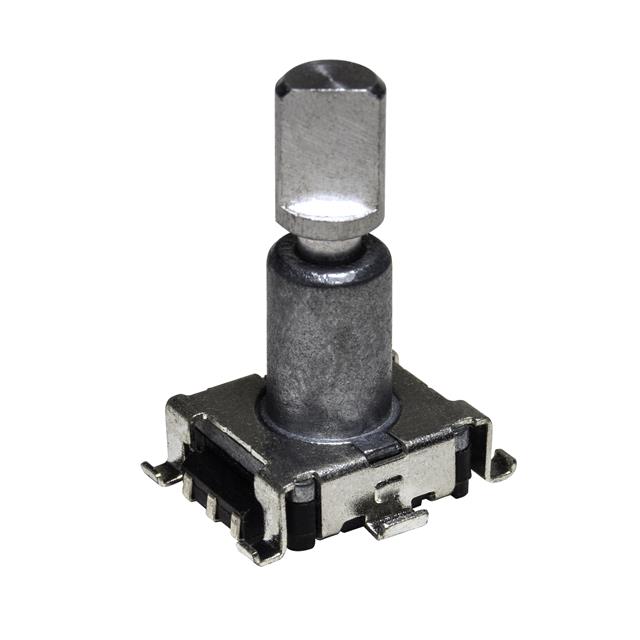

PEC11J-9225F-N0015
ActiveBourns Inc.
ENCODER 15 PULSE 25 MM NO SWITCH
PEC11J-9225F-N0015
ActiveBourns Inc.
ENCODER 15 PULSE 25 MM NO SWITCH
Description
General part information
PEC11J-9225F-N0015
Rotary Encoder 15 Quadrature, 2-Bit Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | PEC11J-9225F-N0015 |
|---|---|
| Actuator Type | 6mm Dia Flatted End |
| Built in Switch | No |
| Detent | Yes |
| Mounting Type | Surface Mount |
| Orientation | Vertical |
| Output Type | Quadrature, 2-Bit |
| Pulses per Revolution | 15 |
| Rotational Life (Cycles Min) | 100 K |
| Termination Style | Gull Wing |
