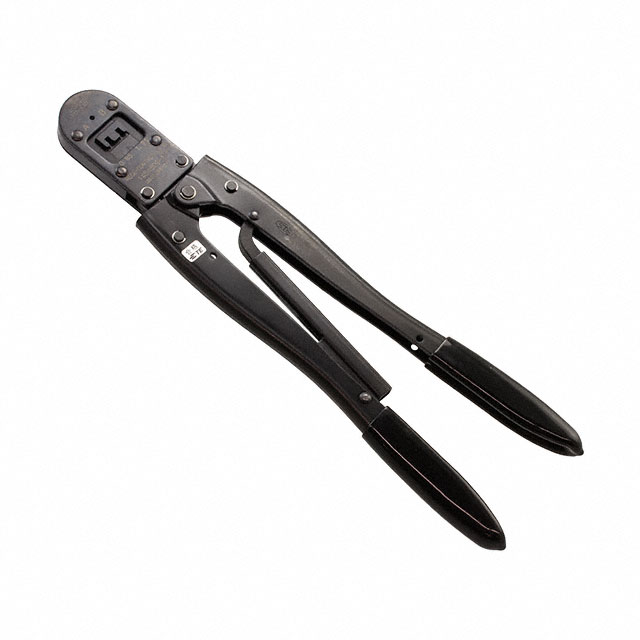

Specification	1454509-1

For Use With/Related Products	Rectangular Contacts
Ratcheting	Ratchet
Tool Method	Manual
Tool Type	Hand Crimper
Wire Entry Location	Side Entry
Wire Gauge or Range - AWG (Max)	18 AWG
Wire Gauge or Range - AWG (Min)	16 AWG

CERTI-CRIMP II Series

Part	For Use With/Related Products	Accessory Type	Tool Type	Tool Method	Wire Entry Location	Ratcheting	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Related Product Type	Related Product Minimum Gauge	Related Product Maximum Gauge	Compatible Tools
TE Connectivity AMP Connectors 69551-9	Bench Press - Applicator	Anvil
TE Connectivity AMP Connectors 91586-1	Rectangular Contacts		Hand Crimper	Manual	Side Entry	Ratchet	20 AWG	14 AWG
TE Connectivity AMP Connectors 59975-1	Splices and Terminals		Hand Crimper	Hydraulic	Bottom Entry	No Ratchet	8 AWG	2 AWG
TE Connectivity AMP Connectors 46447	10-22 AWG Splices and Terminals		Hand Crimper	Battery Powered	Side Entry	No Ratchet	12 AWG	10 AWG	Splices and Terminals	10 AWG	22 AWG
TE Connectivity AMP Connectors 45066-3	Ferrules		Die Set									59500 69270-1
TE Connectivity AMP Connectors 91519-1	Backplane and Circular Contacts		Hand Crimper	Manual	Side Entry	Ratchet	18 AWG	14 AWG
TE Connectivity AMP Connectors 91546-1	Contacts		Hand Crimper	Manual	Side Entry	Ratchet	20 AWG	18 AWG
TE Connectivity AMP Connectors 539783-5	929150		Die Set									539783-1
TE Connectivity AMP Connectors 58247-3	18-26 AWG Rectangular IDC Connectors		Terminating Head									58074-1 58075-1
TE Connectivity AMP Connectors 91561-1	Rectangular Contacts		Hand Crimper	Manual	Side Entry	Ratchet	16 AWG	14 AWG
