3CIF06
ActiveEaton - Electronics Division

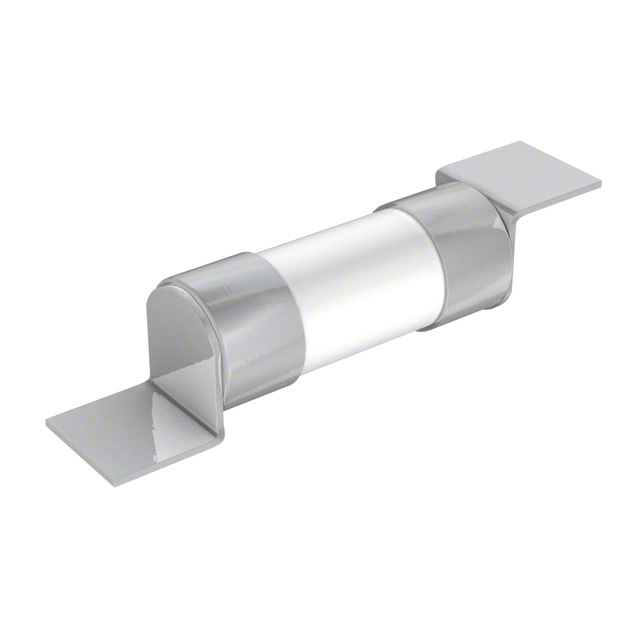

FUSE CARTRIDGE 3A 600VAC/250VDC
3CIF06
ActiveEaton - Electronics Division
FUSE CARTRIDGE 3A 600VAC/250VDC
Description
General part information
3CIF06
3A 600 VAC 250 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | 3CIF06 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CSA, CE |
| Breaking Capacity | 200 kA |
| Current Rating | 3 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | Cylindrical, Blade Terminal (Alternating) |
| Size / Dimension Diameter | 0.543 in |
| Size / Dimension Length | 1.398 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 250 VDC |
